Requirements for rotary motion show a very broad range of different sizes, load capacity, and positioning accuracy. PI offers stages with all kinds of motorization and guiding options: air-bearing, torque motor driven, motorized worm-gear coupled, tiny piezomotor stages and specialized goniometer stages with orthogonal tip-tilt mounting option. All of them can be mounted to multi-axis combinations with corresponding linear, vertical and XY stages.

Rotation Stages with PIMag® Magnetic Direct-Drive Torque Motor

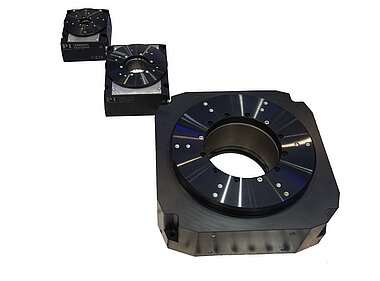

V-62x High-Precision Rotation Stage with Direct Drive

Ideal for Indexing, Positioning, Scanning, Measuring Technology
  • Direct drive for efficient dynamic performance
  • Motion platform diameters of 85 mm, 110 mm, and 210 mm
  • Eccentricity and flatness &lt
  • 1 µm
  • Can be used in any orientation
  • Low profile

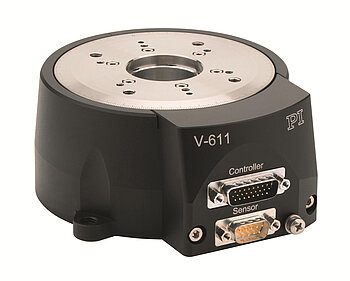

V-611 Rotation Stage

High Load Capacity and Long Lifetime for Industrial Applications

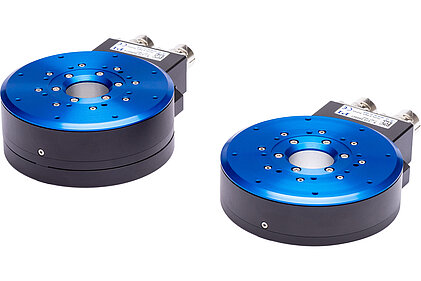

V-610 Compact PIMag® Rotation Stage

Flat Design at High-Torque for Loads up to 2 kg

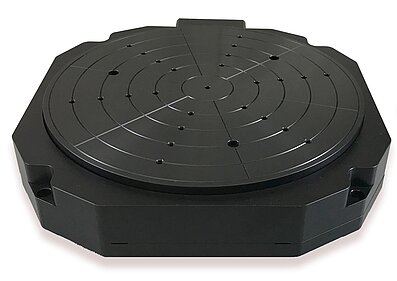

A-63x PIglide RL Flat Rotation Stage with Air Bearing

Friction-free, Motorized
  • Friction-free, motorized
  • Low profile
  • Eccentricity/flatness &lt
  • 100nm
  • Self-locking option

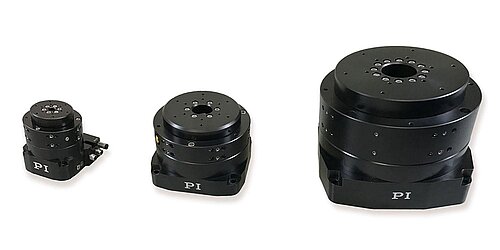

A-62x PIglide RM Rotation Stage with Air Bearings

Friction-Free, Ideal for Indexing, Positioning, Scanning, Measuring Technology
  • Friction-Free
  • Motion platform 50mm to 300mm
  • Load capacity up to 4170N
  • Eccentricity/flatness &lt
  • 200nm
  • mounted vertically or horizontally

Rotation Stages with Stepper, DC & Brushless DC (BLDC) Motors

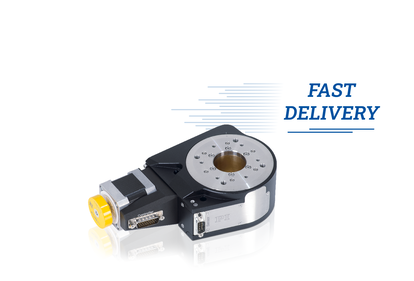

L-611 Precision Rotation Stage

High Run-Out Accuracy

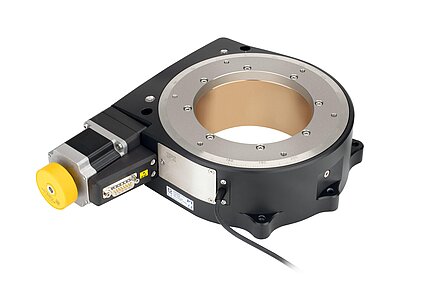

PRS-200 Precision Rotation Stage

Large Aperture, High Run-Out Accuracy

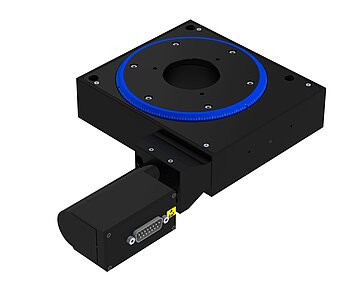

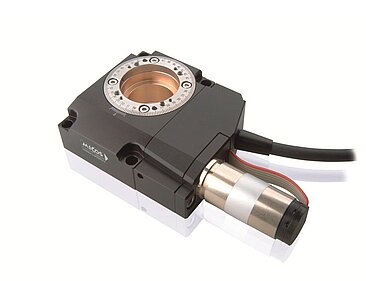

M-060 • M-061 • M-062 Precision Rotation Stage

Unlimited Travel Range

Miniature Rotation Stages with Q-Motion & PILine® Drives

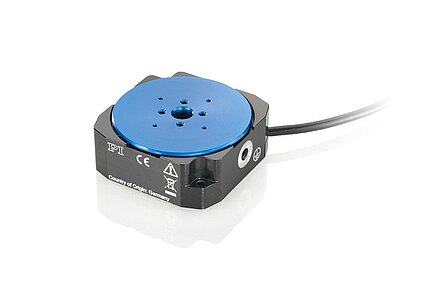

U-628 PILine® Rotation Stage

Miniature Stage with Ultrasonic Piezo Motor and Central Opening

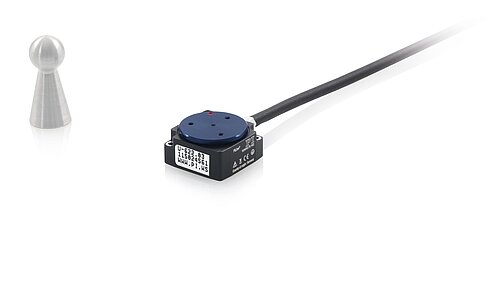

U-622 PILine® Rotation Stage

Miniature Stage with Ultrasonic Piezo Motor

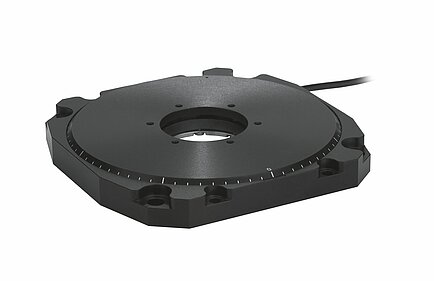

U-651 Rotation Stage with Low-Profile Design

Fast PILine® Direct Drive and Central Opening
  • Low profile of only 14 mm
  • Positions larger loads quickly and with precision
  • Unlimited rotation range &gt
  • 360°
  • Drive torque to 0.3 Nm in both directions of rotation
  • Self-locking when switched off: saves energy and reduces generation of heat
  • Central aperture for more fields of application

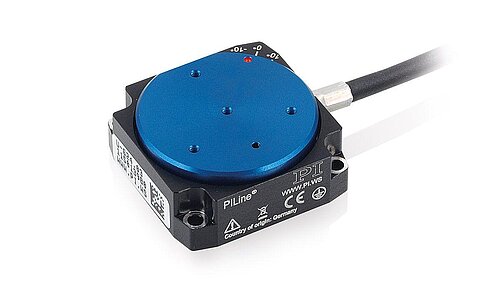

U-624 PILine® Rotation Stage

Miniature Stage with Ultrasonic Piezo Motor

Q-632 Q‑Motion® Rotation Stage

Compact Through Piezo Motor: 30 mm Turntable Diameter

Miniature Rotation Stages with Stepper, DC & Brushless DC (BLDC) Motors

RS-40 Compact Rotation Stage

Precision Positioning

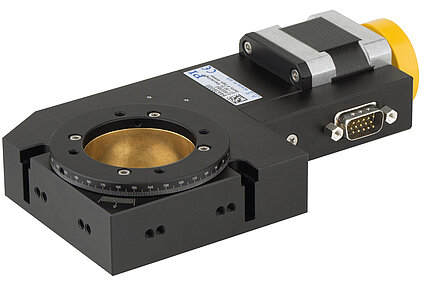

DT-80 Compact Rotation Stage

Large Clear Aperture
