Piezo Flexure XYZ Positioners and Scanners

P-733.3 XYZ Piezo Nanopositioner

High-Precision XYZ Scanner with Aperture

P-616 NanoCube® Nanopositioner

Compact Parallel-Kinematic Nanopositioner for Fiber Alignment and Scanning Microscopy
  • Travel range X/Y: 100 µm
  • Travel range Z: 100 µm
  • Bidirectional repeatability X/Y: 10 nm / 20 nm
  • Bidirectional repeatability Z: 10 nm
  • Max. payload: 1.5 kg

P-611.3 NanoCube® XYZ Nanopositioner

Compact Multi-Axis Piezo Positioner for Nanopositioning and Fiber Alignment
  • Travel range X/Y: 100 µm
  • Travel range Z: 100 µm
  • Max. payload: 1.5 kg

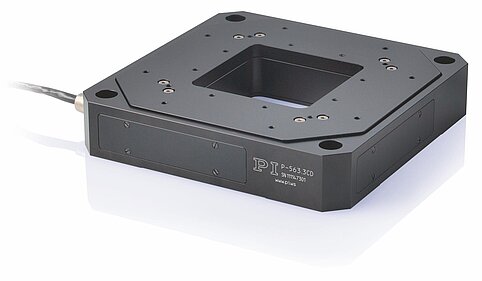

P-561 • P-562 • P-563 PIMars Nanopositioning Stage

High-Precision Nanopositioner for up to 3 Axes
  • Travel range X/Y: to 300 µm
  • Travel range Z: to 300 µm
  • Max. payload: to 25 kg

P-517 • P-527 Multi-Axis Piezo Scanner

High Dynamics Nanopositioner / Scanner with Direct Position Measuring
  • Travel range X/Y: to 200 µm
  • Travel range Z: 20 µm
  • Max. payload: 5 kg

Piezo Flexure XYZ Scanners for Microscopy

P-545.xR8S PInano® XY(Z) Piezo System

Inexpensive Nanopositioning System for High-Resolution Microscopy
  • Travel range X/Y: 200 µm
  • Travel range Z: 200 µm
  • Max. payload: 5 kg

P-545.xC8S PInano® Cap XY(Z) Piezo System

Capacitive Position Measuring for Super-Resolution Microscopy
  • Travel range X/Y: 200 µm
  • Travel range Z: 200 µm
  • Max. payload: 5 kg

P-545.3D8S PInano® Trak Piezo Tracking System

Fast XY(Z) Stage for High Dynamics Microscopy
  • Travel range X/Y: 70 µm
  • Travel range Z: 50 µm
  • Max. payload: 10 kg
