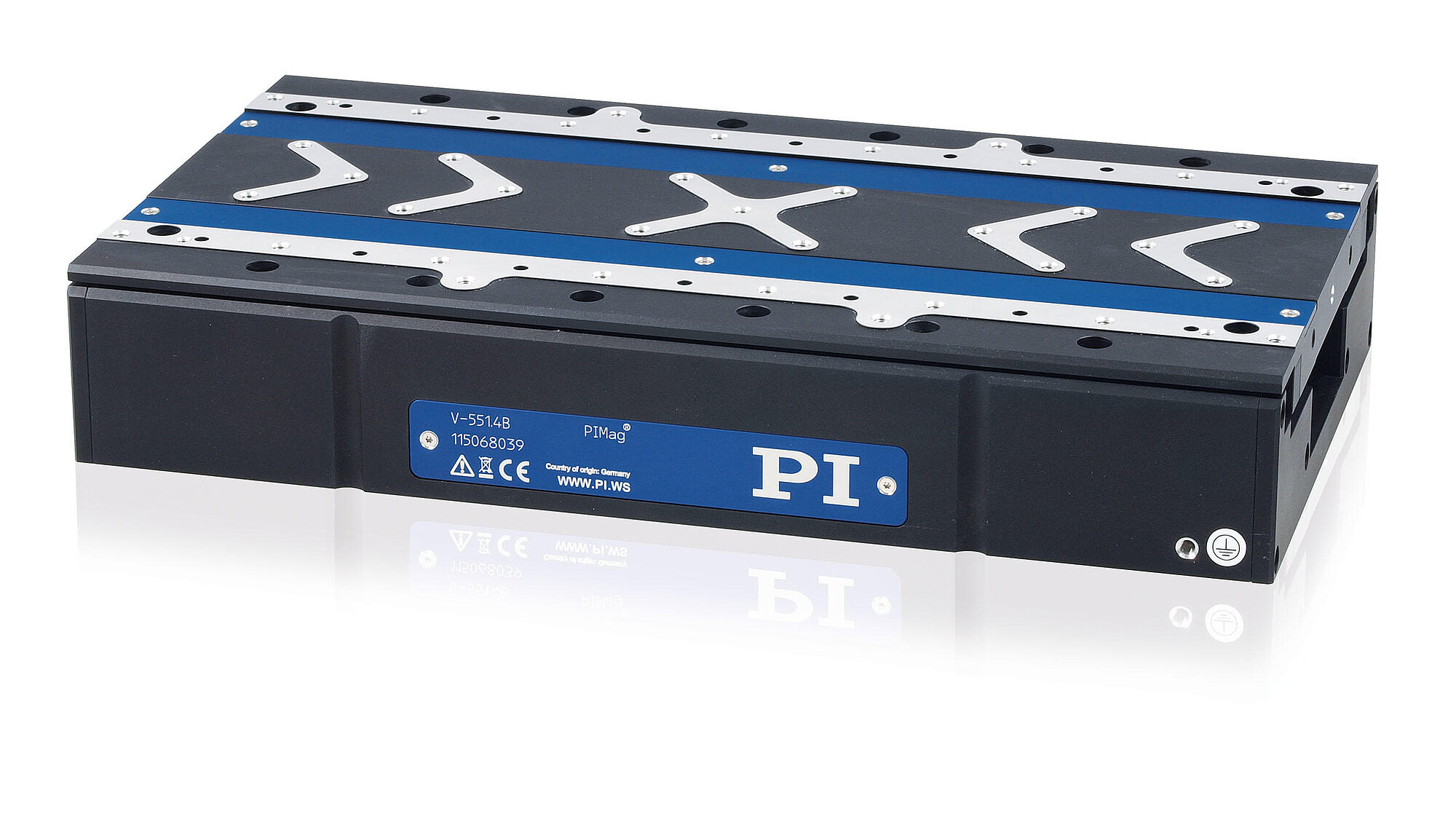

V-551 Precision Linear Stage

High Velocity and Precision due to Magnetic Direct Drive

Travel ranges to 230 mm
Velocity up to 0.5 m/s
Absolute encoder with 1 nm resolution
Highest precision with PIOne linear encoder: Minimum incremental motion 0.5 nm
High guiding accuracy
Compact design with 160 mm width

quote / order

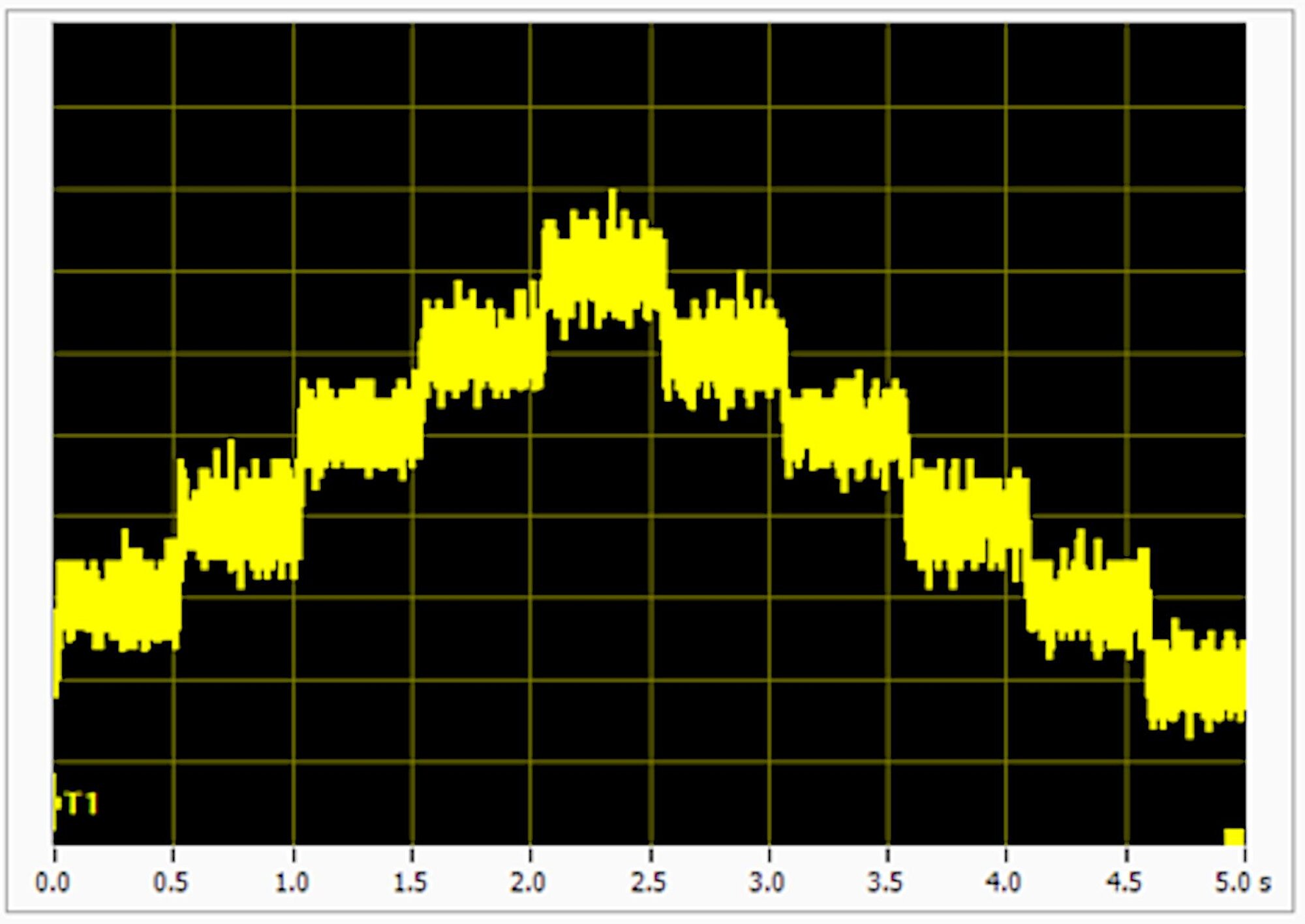

A V-551.4D with PIOne linear encoder performs a sequence of 0.5 nm steps.

A V-551.4D with PIOne linear encoder performs a sequence of 1 nm steps.

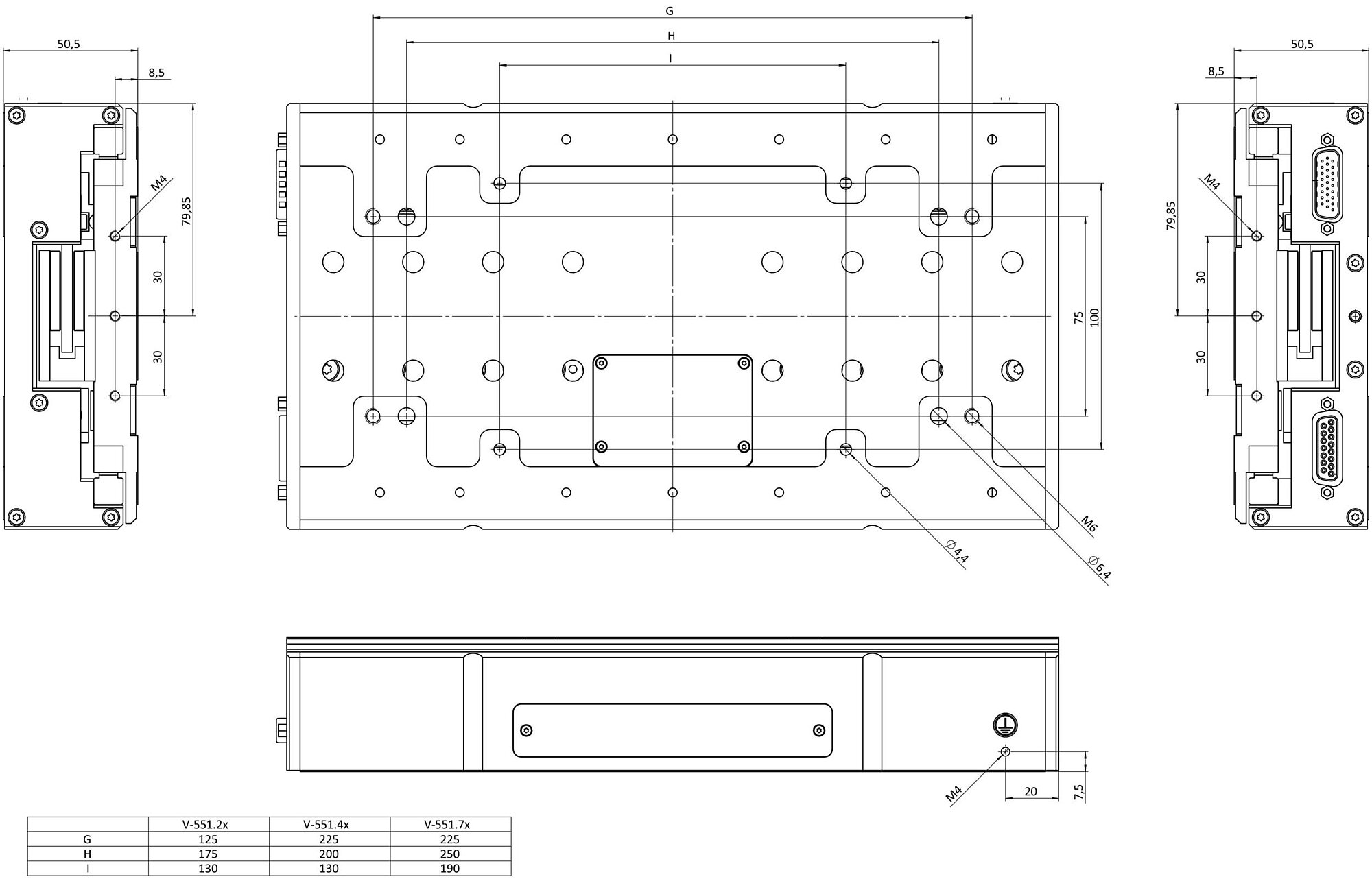

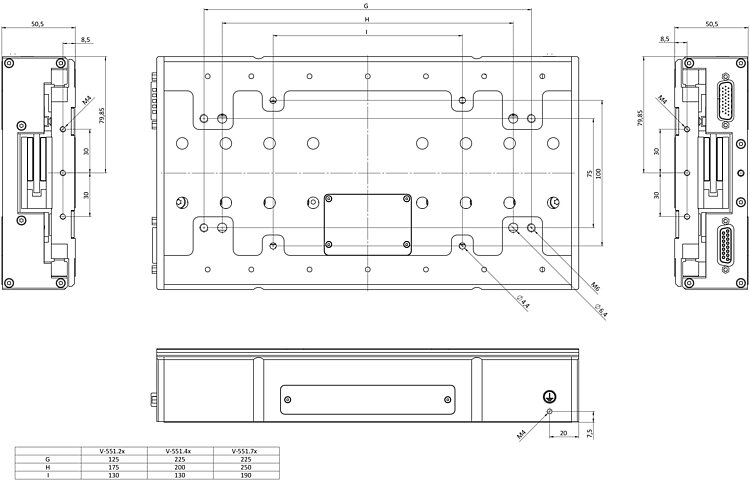

V-551, view from below and side views, dimensions in mm

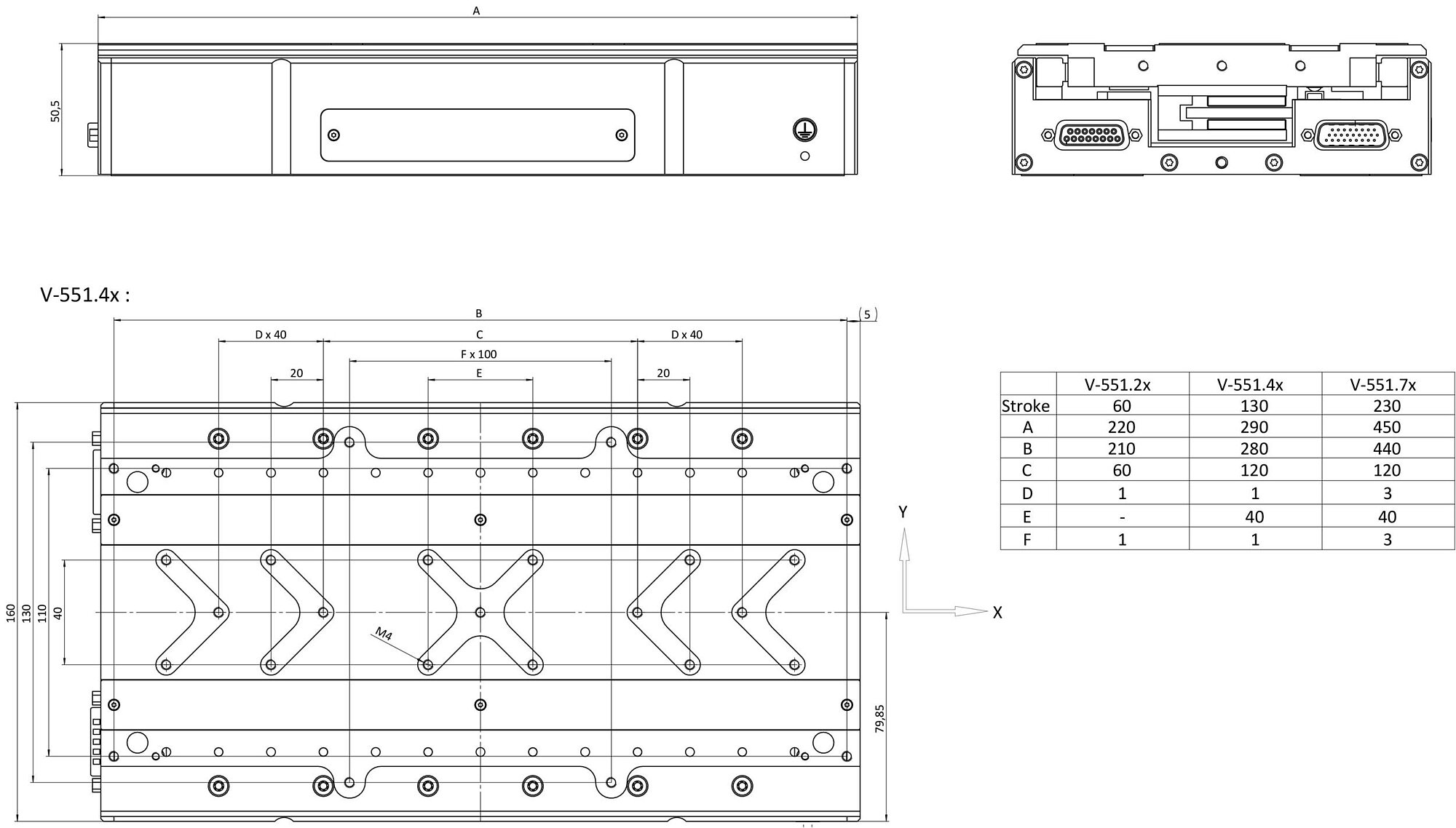

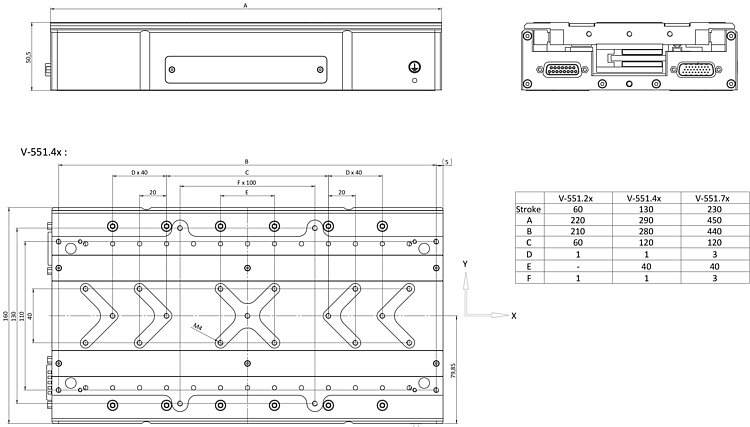

V-551, view from above and side views, dimensions in mm

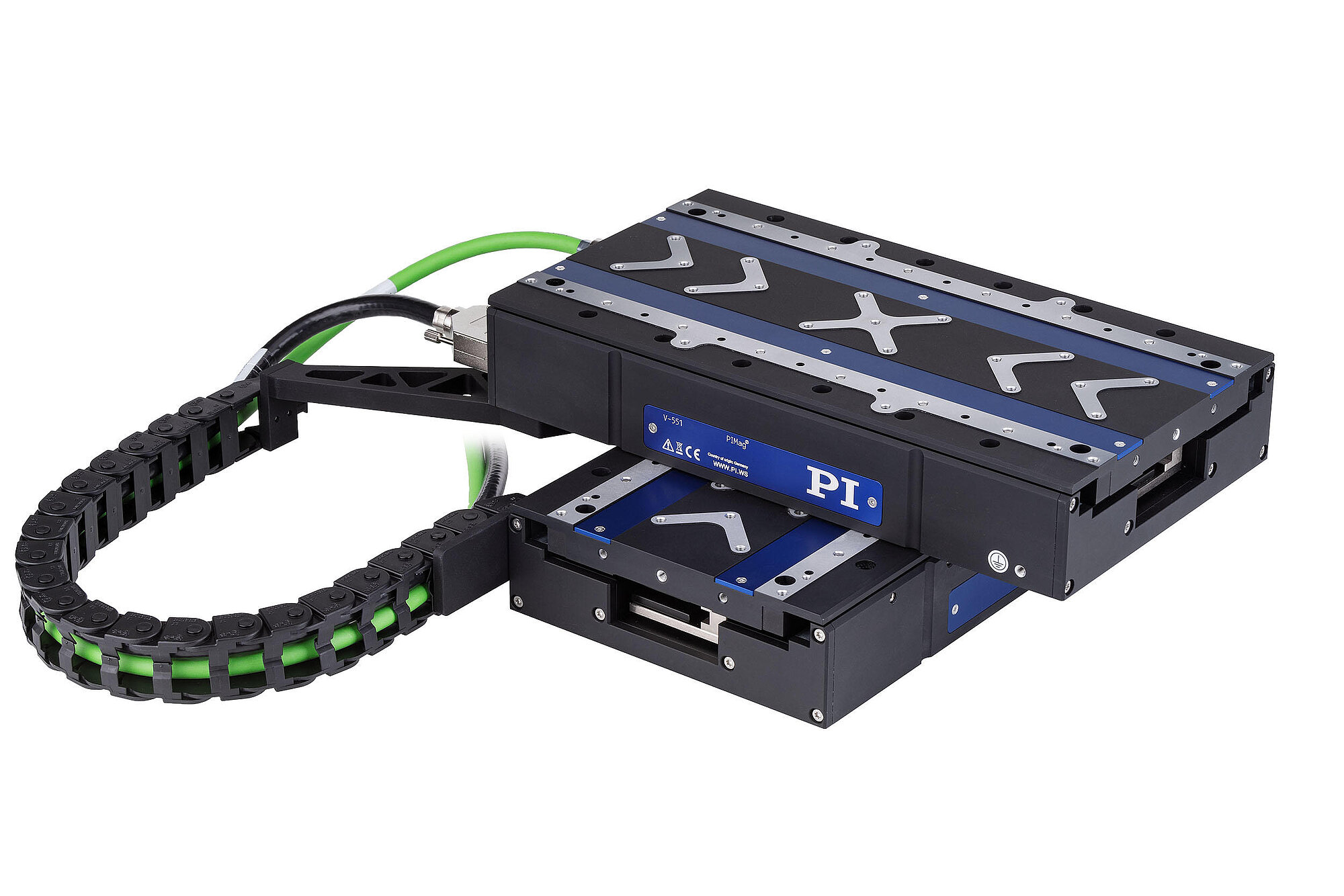

An XY setup of modified V-551.4D linear stages and an optional drag chain.

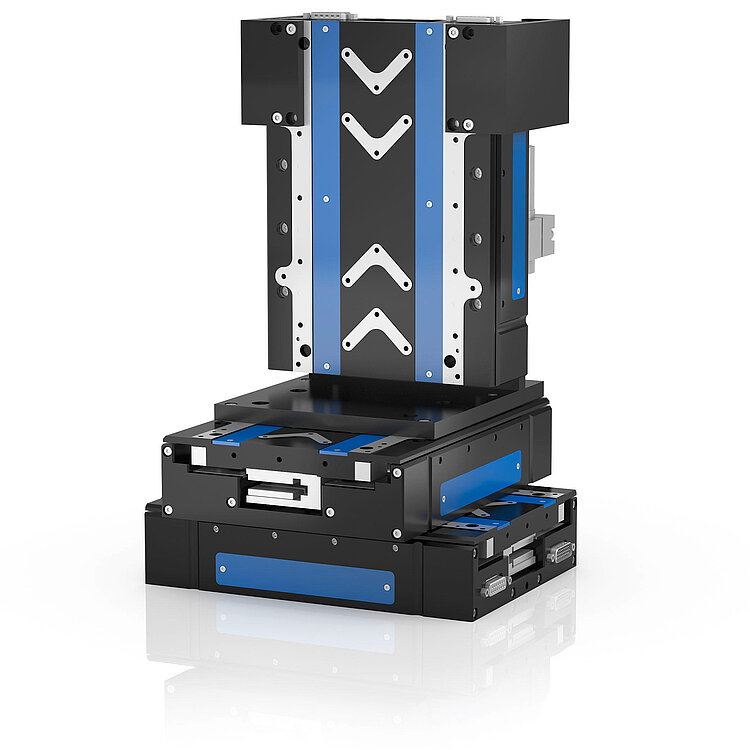

An XYZ assembly consisting of three V-551 linear stages each with 60 mm travel range. The Z axis was modified and has magnetic compensation of the weight force.

At the moment only a limited selection of product variants is available.

Please note that at the moment only a limited selelction of variants of this product family is available. If you require further information contact us via info@pi.ws.

Reference-class linear positioner

Thanks to the smooth-running precision linear guides with crossed roller bearings, the linear positioner is particularly suitable for scanning applications with constant velocity. The anti-creep system reliably prevents cage creep. The guides have high load capacity and high precision under all operating conditions.

Linear motors

Linear motors are electromagnetic direct drives. They dispense with mechanical components in the drivetrain and transfer the drive force directly and friction-free to the motion platform. The drives reach high velocities and accelerations. Ironless motors are particularly suitable for positioning tasks with the highest demands on precision because there is no undesirable interaction with the permanent magnets. This allows smooth running even at the lowest velocities and at the same time, there is no vibration at high velocities. Nonlinearity in control behavior is avoided and any position can be controlled easily. The drive force can be set freely.

Direct position measuring

Position measuring is performed with the highest accuracy directly at the motion platform so that nonlinearity, mechanical play or elastic deformation have no influence on position measuring.

The high-resolution PIOne encoder was developed by PI and, with corresponding processing of the measured values, allows a position resolution of much less than one nanometer. The optical and noncontact PIOne encoders are based on an interferometric measuring principle. Due to the short signal period and the high quality of the signals, the linearity error of PIOne encoders is less than 1 %. PIOne encoders support direction sensing when evaluating a reference signal.

Absolute encoders supply explicit position information that enables immediate determination of the position. This means that referencing is not required during switch-on, which increases efficiency and safety during operation.

Application fields

Industry and research. Automation. Metrology. Photonics and precision scanning in semiconductor or flat panel display manufacturing

Download datasheet specifications quote / order

Datasheet

Version / Date

2024-07-17

pdf - 1 MB

Version / Date

2024-07-17

pdf - 1 MB

Version / Date

2019-02-08

pdf - 1 MB

Version / Date

2019-07-17

pdf - 1 MB

Download

Select a travel range:

Motion	V-551.2B	V-551.4B	V-551.7B	Tolerance
Active axes	X	X	X
Travel range in X	60 mm	130 mm	230 mm
Maximum velocity in X, unloaded	500 mm/s	500 mm/s	500 mm/s
Straightness error E_YX (straightness)	± 1 µm	± 1 µm	± 2 µm	typ.
Straightness error E_ZX (flatness)	± 2 µm	± 2 µm	± 2 µm	typ.
Angular error E_BX (pitch)	± 50 µrad	± 100 µrad	± 100 µrad	typ.
Angular error E_CX (yaw)	± 50 µrad	± 50 µrad	± 50 µrad	typ.
Positioning	V-551.2B	V-551.4B	V-551.7B	Tolerance
Minimum incremental motion in X	0.002 µm	0.002 µm	0.002 µm	typ.
Unidirectional repeatability in X	± 0.01 µm	± 0.01 µm	± 0.01 µm	typ.
Bidirectional repeatability in X	0.1 µm	0.1 µm	0.1 µm	typ.
Reference switch	—	—	—
Limit switches	Hall effect, N/O contact, 5 V, TTL	Hall effect, N/O contact, 5 V, TTL	Hall effect, N/O contact, 5 V, TTL
Integrated sensor	Absolute linear encoder	Absolute linear encoder	Absolute linear encoder
Sensor signal	BiSS-C	BiSS-C	BiSS-C
Sensor signal period	—	—	—
Sensor resolution	1 nm	1 nm	1 nm
Drive Properties	V-551.2B	V-551.4B	V-551.7B	Tolerance
Drive type	Ironless 3-phase linear motor	Ironless 3-phase linear motor	Ironless 3-phase linear motor
Nominal voltage	48 V	48 V	48 V
Peak voltage	48 V	48 V	48 V
Nominal current, RMS	1.5 A	1.5 A	1.5 A	typ.
Peak current, RMS	10 A	10 A	10 A	typ.
Drive force in X	27 N	27 N	27 N	typ.
Peak force in X	180 N	180 N	180 N
Force constant	18 N/A	18 N/A	18 N/A
Resistance phase-phase	5.4 Ω	5.4 Ω	5.4 Ω	typ.
Inductance phase-phase	1.8 mH	1.8 mH	1.8 mH
Back EMF	16 V·s/m	16 V·s/m	16 V·s/m	max.
Pole pitch N-N	30 mm	30 mm	30 mm
Mechanical Properties	V-551.2B	V-551.4B	V-551.7B	Tolerance
Permissible push force in Y	50 N	50 N	50 N	max.
Permissible push force in Z	150 N	150 N	150 N	max.
Moved mass in X, unloaded	2200 g	2700 g	4900 g
Guide	Crossed roller guide	Crossed roller guide	Crossed roller guide
Overall mass	4200 g	5500 g	9700 g
Material	Aluminum, black anodized	Aluminum, black anodized	Aluminum, black anodized
Miscellaneous	V-551.2B	V-551.4B	V-551.7B	Tolerance
Operating temperature range	5 to 40 °C	5 to 40 °C	5 to 40 °C
Connector	HD D-sub 26 (m)	HD D-sub 26 (m)	HD D-sub 26 (m)
Sensor connector	D-sub 15 (f)	D-sub 15 (f)	D-sub 15 (f)
Recommended controllers / drivers	C-891, C-885 with C-891.10C885, A-811.CE, G-901	C-891, C-885 with C-891.10C885, A-811.CE, G-901	C-891, C-885 with C-891.10C885, A-811.CE, G-901

Note on sensor resolution: interpolated

Note on minimum incremental motion: With ACS NanoPWM

Connecting cables are not included in the scope of delivery and must be ordered separately.

At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.
