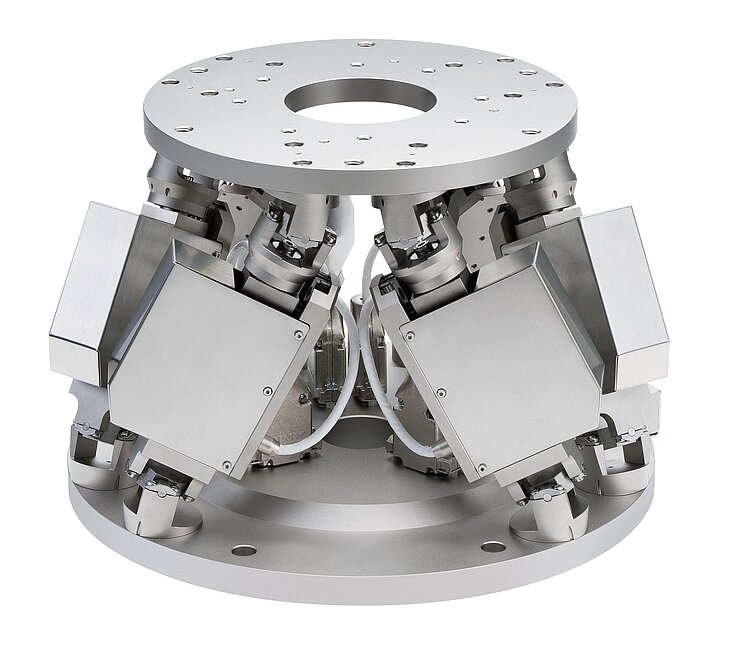

H-824.V Vacuum-Compatible 6-Axis Hexapod

Compact and Precise

  • Load capacity to 5 kg, self-locking version
  • Travel ranges to 45 mm / 25°
  • Min. incremental motion to 0.3 µm
  • Repeatability to ±0.1 µm / ±2 µrad
  • Velocity to 12.5 mm/s
H-824.V Vacuum-Compatible 6-Axis Hexapod
Product Description Specifications Downloads Quote / Order

Precision-class 6-axis positioning system

Parallel-kinematic design for six degrees of freedom making it significantly more compact and stiff than serial-kinematic systems, higher dynamic range, no moved cables: Higher reliability, reduced friction. suitable for vacuum environments to 10-6 hPa.

Compact due to folded drive design

PI Hexapod Simulation Tool

The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before making a purchase, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes into account the position and motion of the hexapod as well as the pivot point and several reference coordinate systems.

Fields of application

Research and industry. For micromanipulation, biotechnology, semiconductor manufacturing

Specifications

Datasheet

Datasheet H-824.V

Version / Date
2022-03-17
pdf - 2 MB
Version / Date
2022-03-17
pdf - 2 MB

Downloads

Product Note

Product Note

Product Change Notification Motor Driven Products

Version / Date
2021-04-19
pdf - 917 KB
English
Product Note

Product Change Notification Hexapod Cables

Version / Date
2021-01-15
pdf - 186 KB
English

Datasheet

Datasheet

Datasheet H-824.V

Version / Date
2022-03-17
pdf - 2 MB
Version / Date
2022-03-17
pdf - 2 MB

Documentation

Documentation

Short Instructions MS247EK

Hexapod Systems: H-xxx Hexapod with C-887.5xx Controller

Version / Date
2.0.0 06/2020
pdf - 2 MB
Version / Date
2.0.0 06/2020
pdf - 2 MB
Documentation

User Manual MS200

H-824 Compact Microrobot

Version / Date
2.3.0 2019-12-04
pdf - 1 MB
Version / Date
2.3.0 2019-12-04
pdf - 1 MB

3-D Models

3-D Models

H-824.x2x 3-D model

Version / Date
2020-11-24
zip - 4 MB

Software Files

Software Files

Hexapod Simulation Tool

Version / Date
2022-01-26
zip - 18 MB
Separate connection cable required for power supply and data transmission. Connecting cables are not in the scope of delivery, although this may be stated otherwise in the manual. The manual is currently being revised.

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

H-824.D2V

Compact hexapod microrobot, direct drive, 12.5 mm/s, 2.5 kg load, vacuum compatible to 10-6 hPa, D-sub connector, cable set 2 m vacuum side, feedthrough. Air side connecting cables are not included in the scope of delivery and must be ordered separately.

H-824.G2V

Compact hexapod microrobot, gearhead, 0.5 mm/s, 5 kg load, vacuum compatible to 10-6 hPa, D-sub connector, cable set 2 m vacuum side, feedthrough. Air side connecting cables are not included in the scope of delivery and must be ordered separately.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
