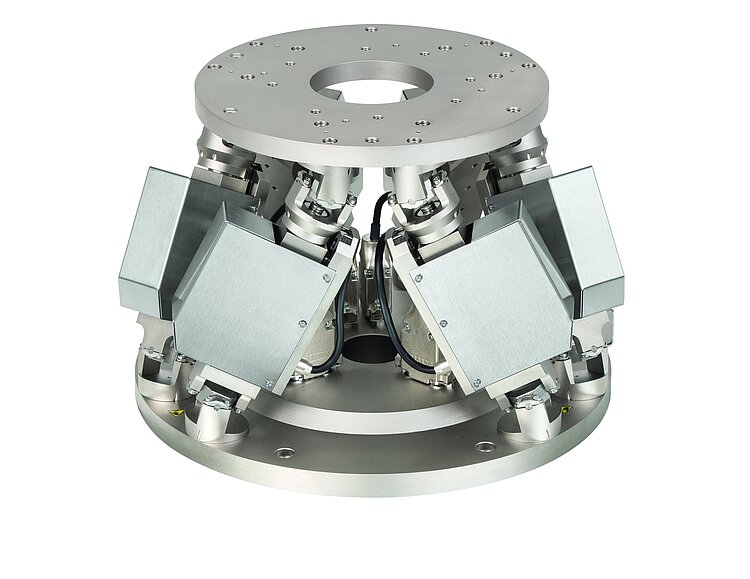

H-824 6-Axis Hexapod

Compact and Precise

H-824 6-Axis Hexapod
Product Description Specifications Downloads Quote / Order

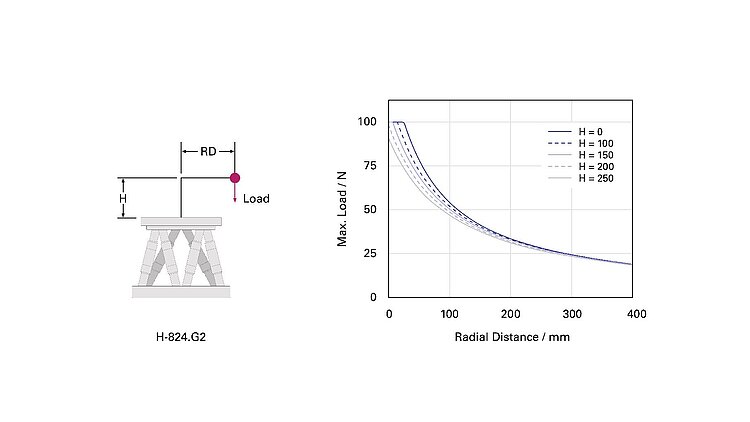

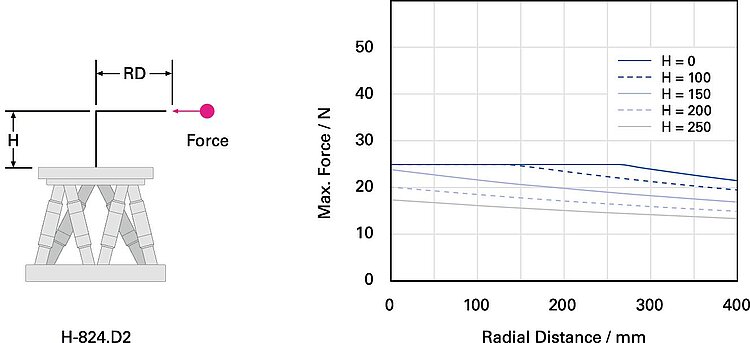

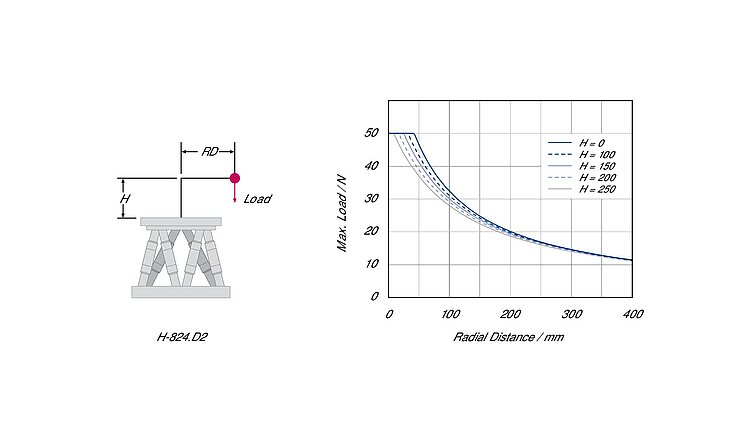

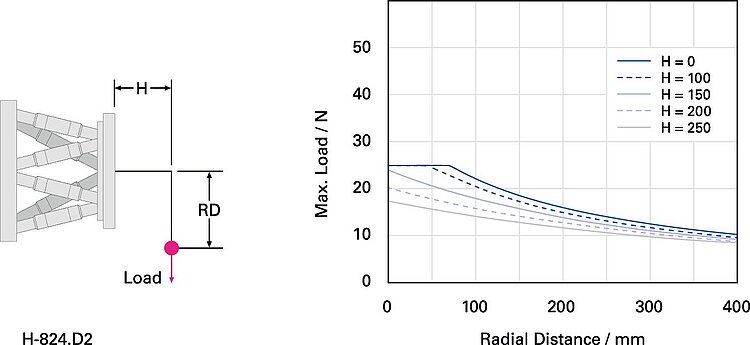

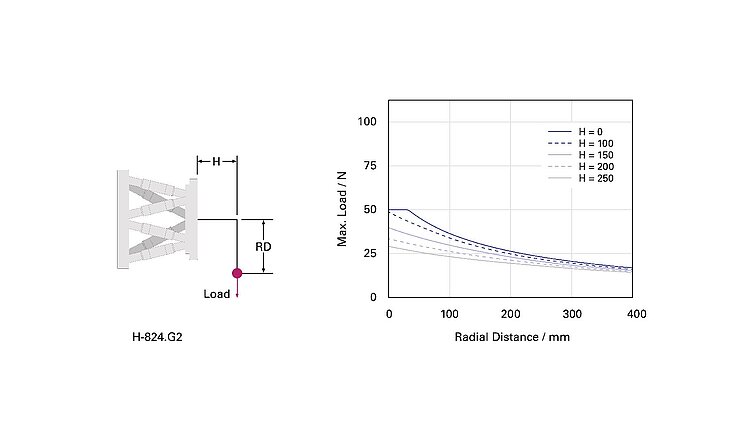

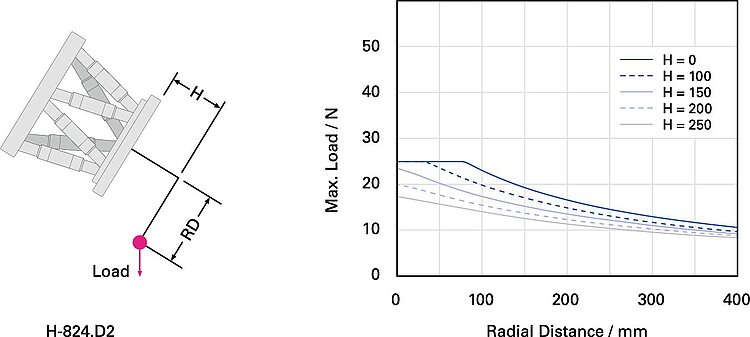

  • Load capacity to 10 kg, self-locking version
  • Travel ranges to 45 mm / 25°
  • Min. incremental motion to 0.3 µm
  • Repeatability to ±0.1 µm / ±2 µrad
  • Velocity to 25 mm/s

Precision-class 6-axis positioning system

Parallel-kinematic design for six degrees of freedom making it significantly more compact and stiff than serial-kinematic systems, higher dynamic range, no moved cables: Higher reliability, reduced friction.

Compact due to folded drive design

PI Hexapod Simulation Tool

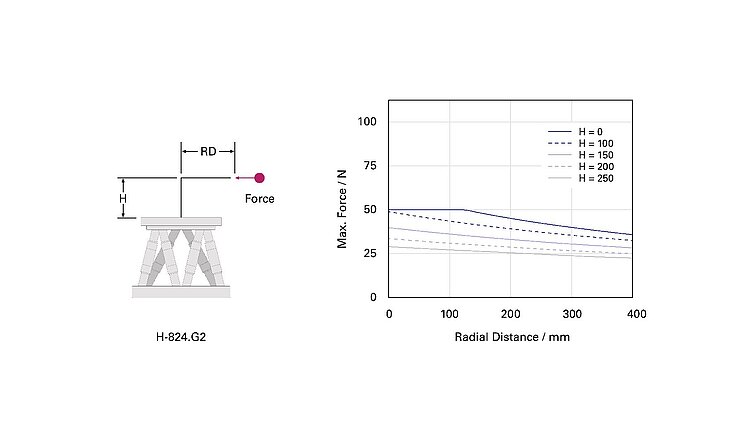

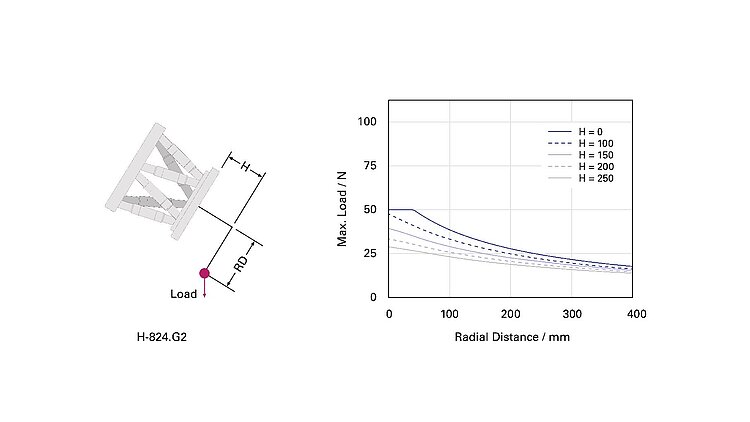

The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before making a purchase, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes into account the position and motion of the hexapod as well as the pivot point and several reference coordinate systems.

Fields of application

Research and industry. For micromanipulation, biotechnology, semiconductor manufacturing

Separate connection cable required for power supply and data transmission.
Connecting cables are not in the scope of delivery, although this may be stated otherwise in the manual. The manual is currently being revised

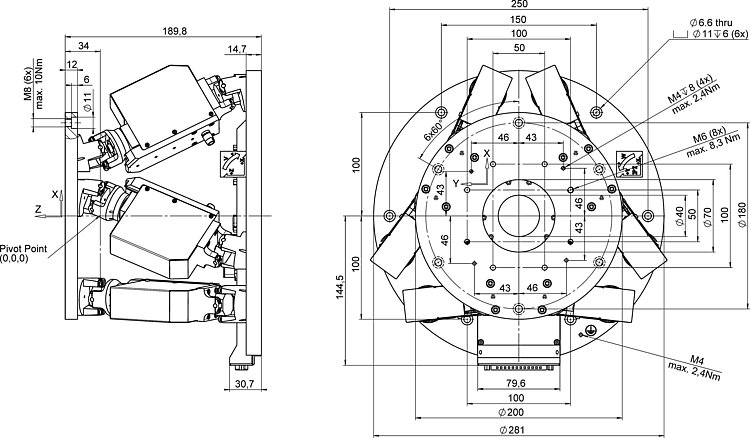

Specifications

Datasheet

Datasheet H-824

Version / Date
2020-12-10
Version / Date
2020-12-10
Version / Date
2018-07-12
Document language
pdf - 1 MB
pdf - 1 MB
pdf - 754 KB

Downloads

Product Note

Product Note

Product Change Notification Hexapod Cables

Version / Date
2021-01-15
Document language English
pdf - 186 KB
Product Note

Product Change Notification Motor Driven Products

Version / Date
2021-04-19
Document language English
pdf - 917 KB

Datasheet

Datasheet

Datasheet H-824

Version / Date
2020-12-10
Version / Date
2020-12-10
Version / Date
2018-07-12
Document language
pdf - 1 MB
pdf - 1 MB
pdf - 754 KB

Documentation

Documentation

Short Instructions MS247EK

Hexapod Systems: H-xxx Hexapod with C-887.5xx Controller
Version / Date
2.0.0 06/2020
Version / Date
2.0.0 06/2020
Document language
pdf - 2 MB
pdf - 2 MB
Documentation

User Manual MS200

H-824 Compact Microrobot
Version / Date
2.3.0 2019-12-04
Version / Date
2.3.0 2019-12-04
Document language
Request download link

3-D Models

3-D Models

H-824.x2x 3-D model

Version / Date
2020-11-24
Request download link

Software Files

Software Files

Hexapod Simulation Tool

Version / Date
2020-02-10
Request download link

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

H-824.D2
Compact hexapod microrobot, direct drive, 25 mm/s, 5 kg load, D-sub connector. Connecting cables are not in the scope of delivery and must be ordered separately.

Data transmission cables in other lengths

Power supply cables in other lengths
