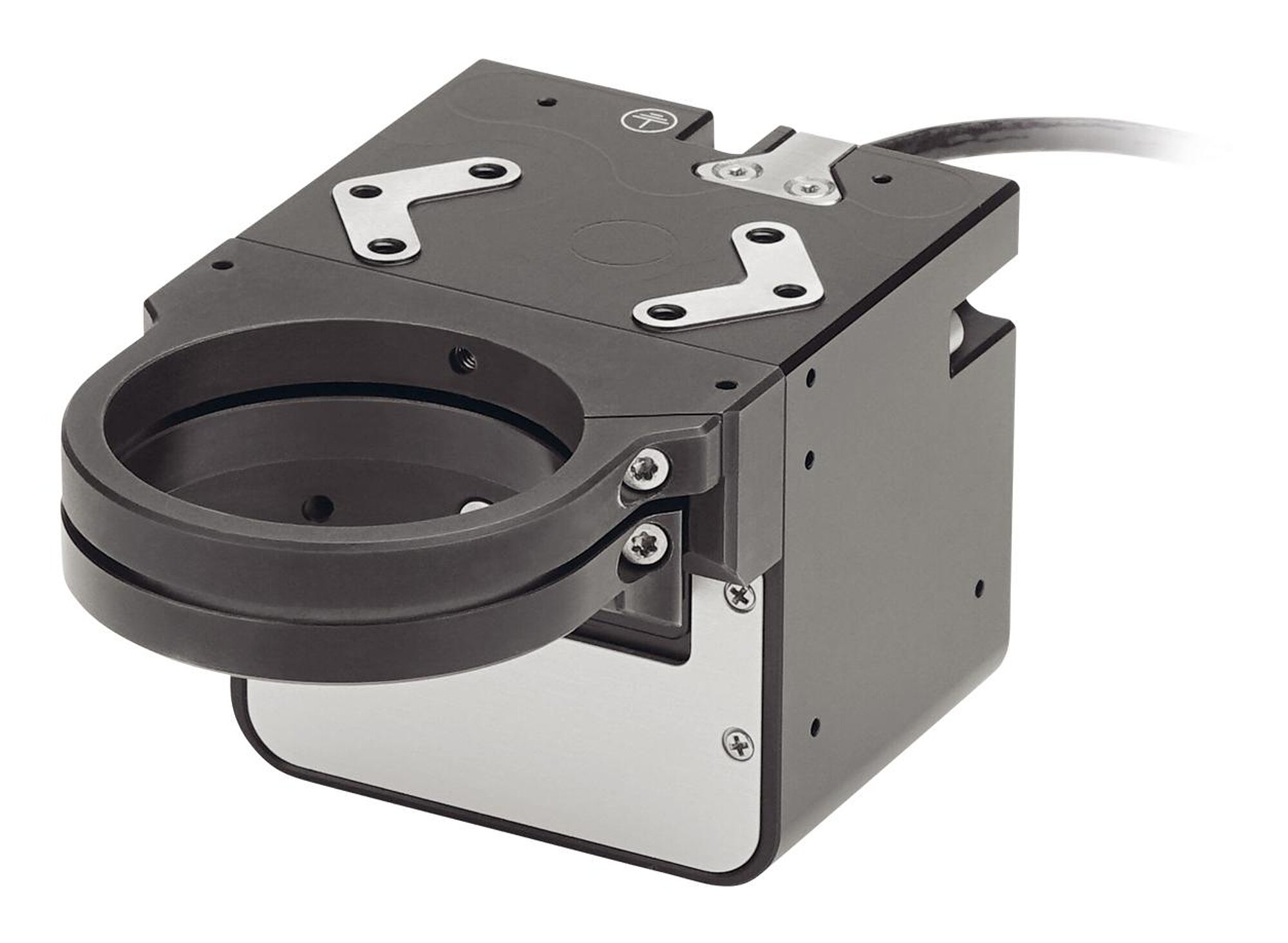

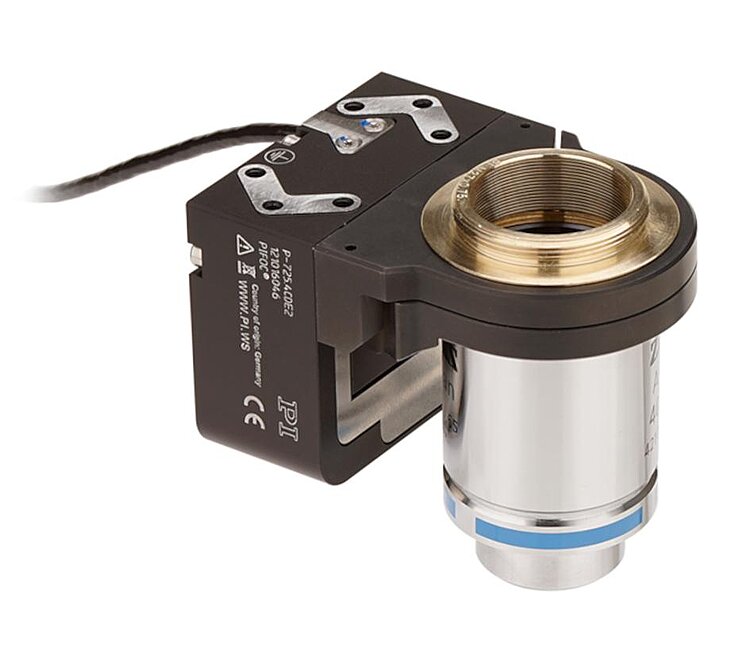

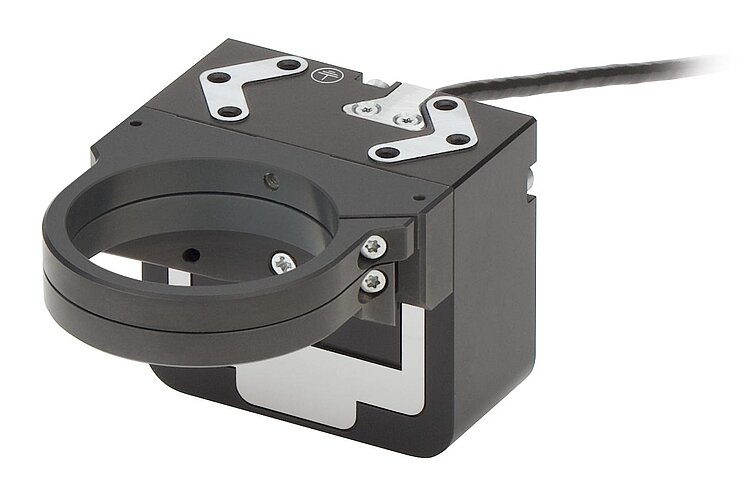

P-725.xCDE2 PIFOC Focus Scanner for Microscope Objectives

Dynamic Scanning with Travel Ranges of 100 µm, 400 µm, or 800 µm

  • Travel range 100 µm, 400 µm, or 800 µm
  • Significantly faster response and longer lifetime than motorized drives
  • Fine positioning of objectives with sub-nm resolution
  • Direct position measuring with capacitive sensors: Highest linearity
  • Compatible with Metamorph® imaging software
  • Large clear aperture with Ø 29 mm
P-725.xCDE2 PIFOC Focus Scanner for Microscope Objectives
Product Description Specifications Downloads Quote / Order

Application fields

  • Super-resolution microscopy
  • Light disk microscopy
  • Confocal microscopy
  • 2-photon microscopy
  • 3D imaging
  • Screening
  • Interferometry
  • Measuring technology
  • Autofocus systems
  • Biotechnology
  • Semiconductor inspection

Outstanding lifetime due to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Subnanometer resolution with capacitive sensors

Capacitive sensors measure with subnanometer resolution without contacting. They guarantee excellent linearity of motion, long-term stability, and a bandwidth in the kHz range.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They work in a wide temperature range.

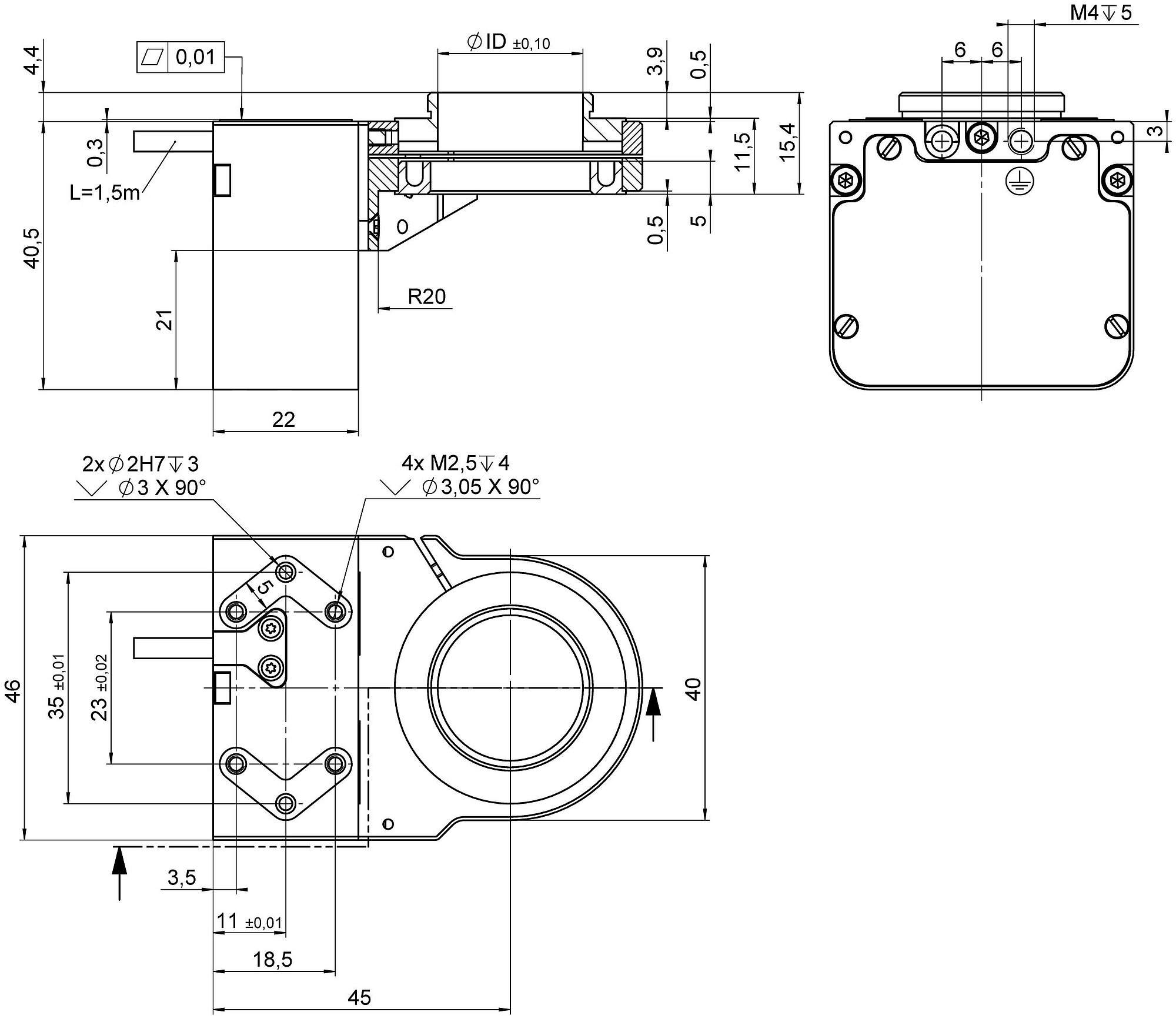

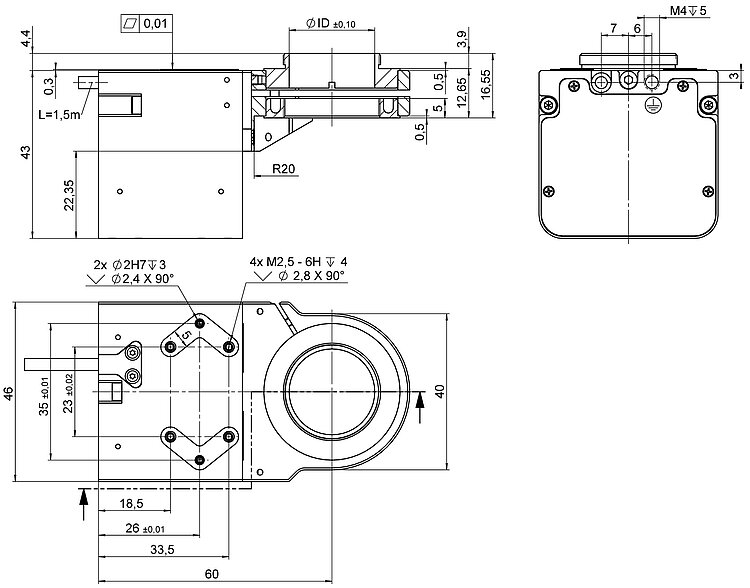

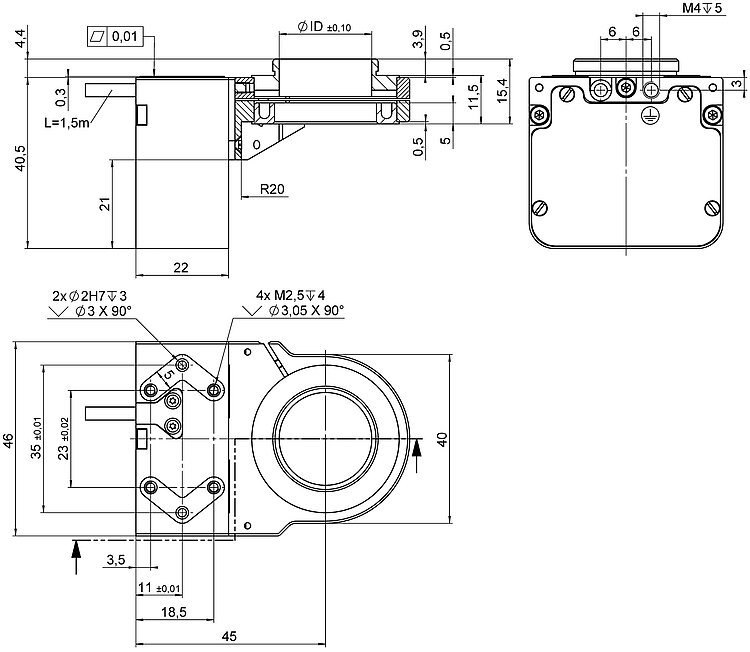

Specifications

Datasheet

Datasheet P-725.xCDE2

Version / Date
2022-04-11
pdf - 2 MB
Version / Date
2022-04-11
pdf - 2 MB

Downloads

Datasheet

Datasheet

Datasheet P-725.xCDE2

Version / Date
2022-04-11
pdf - 2 MB
Version / Date
2022-04-11
pdf - 2 MB

Documentation

Documentation

User Manual P725UM0001

P-725.xCDE2 PIFOC Focus Scanners for Microscope Objectives

Version / Date
2022-04-01
pdf - 1 MB
Version / Date
2022-04-01
pdf - 1 MB
Documentation

Installation Instructions P725UM0002

Thread Adapters for P-725.xCDE2 PIFOC Focus Scanners

Version / Date
2022-04-01
pdf - 746 KB
Version / Date
2022-04-01
pdf - 842 KB
Documentation

Short Instructions PZ240

Piezo Positioning Systems: P-5xx / P-6xx / P-7xx

Version / Date
6.1.0 10/2019
pdf - 1 MB
Version / Date
6.1.0 10/2019
pdf - 1 MB

3-D Models

3-D Models

3-D model P-725.xCDE2

Version / Date
2021-06-24
zip - 2 MB

Brochure

Brochure

P-725 PIFOC® Portfolio

Piezobased Objective Focus Drive Series

Version / Date
BRO77E 2021-06-21
pdf - 1 MB
English

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

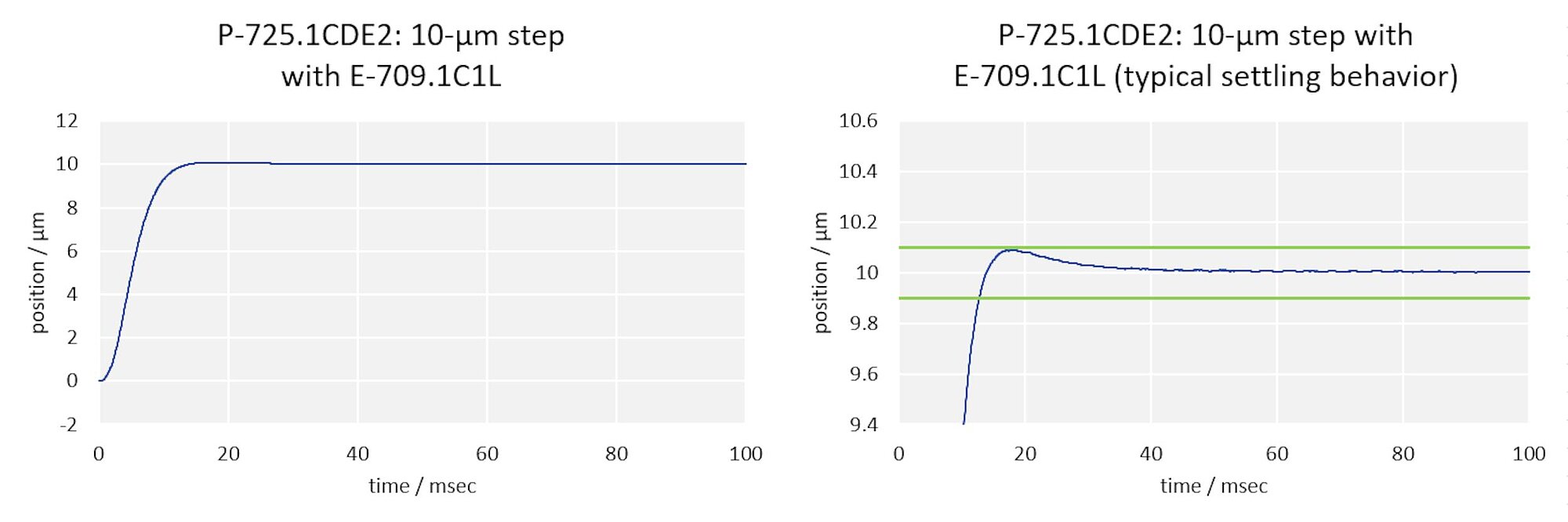

P-725.1CDE2

PIFOC focus scanner for microscope objectives, high precision, fast step-and-settle, 100 µm, capacitive sensors, D-sub connector

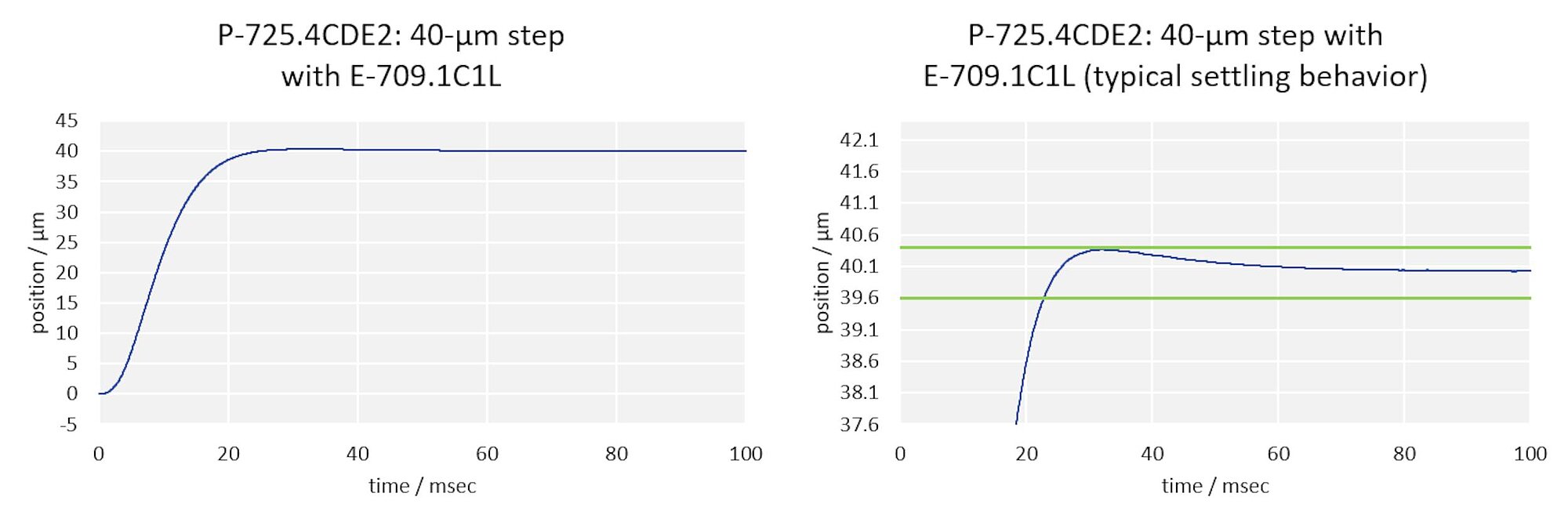

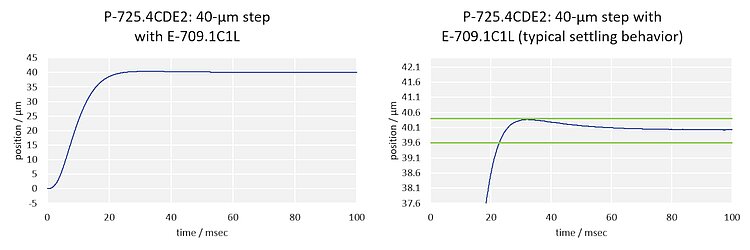

P-725.4CDE2

PIFOC focus scanner for microscope objectives, high precision, fast step-and-settle, 400 µm, capacitive sensors, D-sub connector

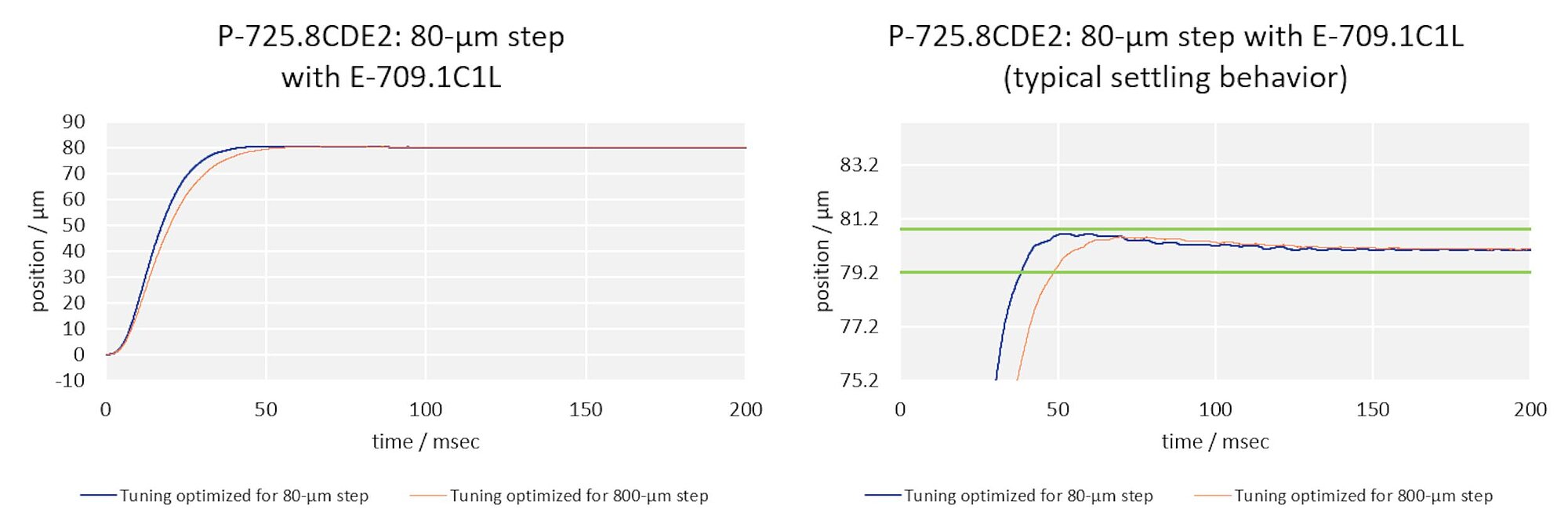

P-725.8CDE2

PIFOC focus scanner for microscope objectives, high precision, fast step-and-settle, 800 µm, capacitive sensors, D-sub connector
