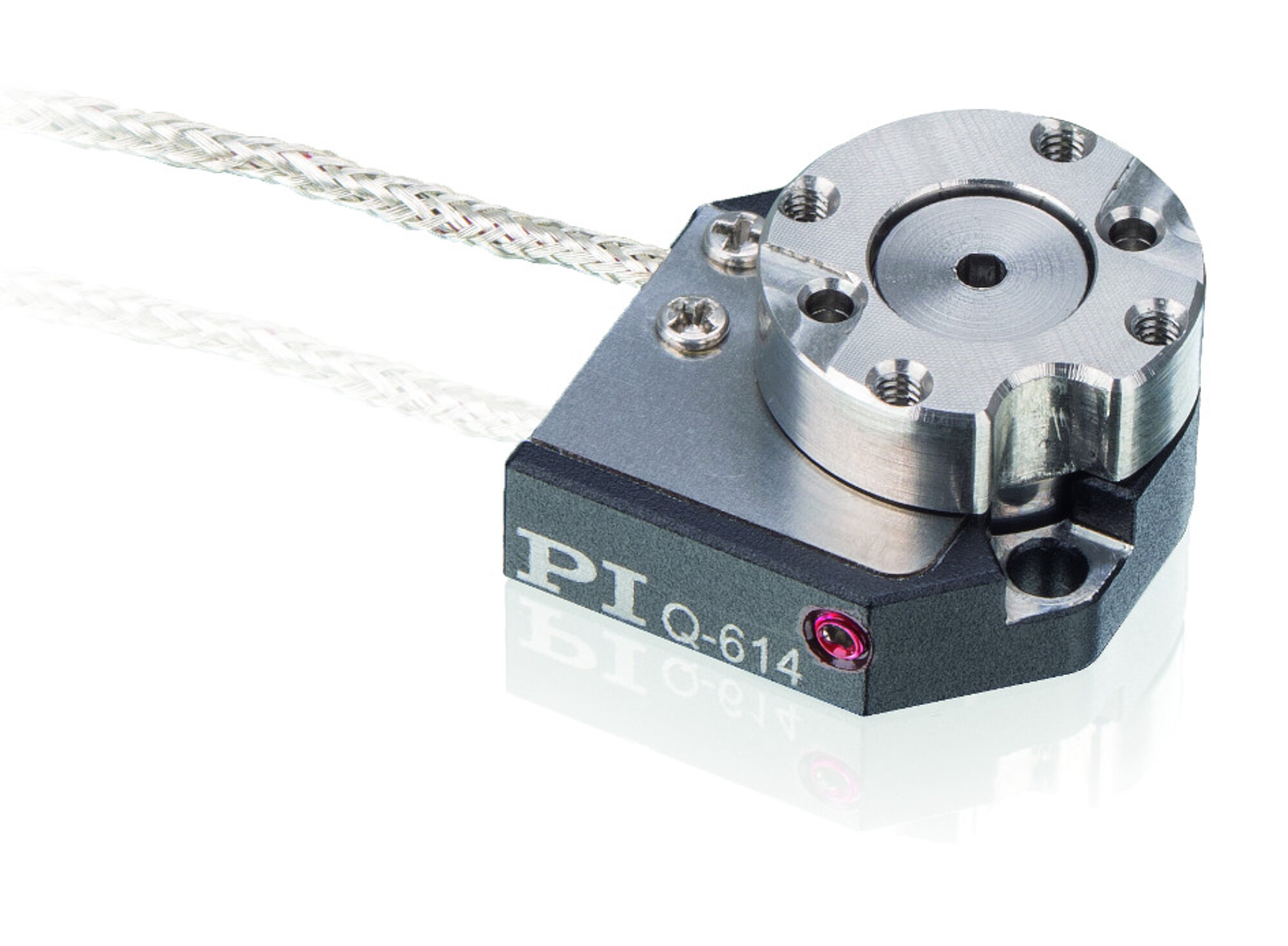

Q-614 Q-Motion® Miniature Rotation Stage
This product has been replaced by the following new product: Q-632 Q‑Motion® Rotation Stage

Q-614 Q-Motion® Miniature Rotation Stage

Minimum Dimensions: 14 mm Turntable Diameter

  • Only 18 mm in width and 10 mm in height
  • Rotation range >360°
  • Velocity 70 °/s
  • Drive torque 5 mN·m
  • Suitable for vacuum to 10-6 hPa, versions to 10-9 hPa available
to content quote / order

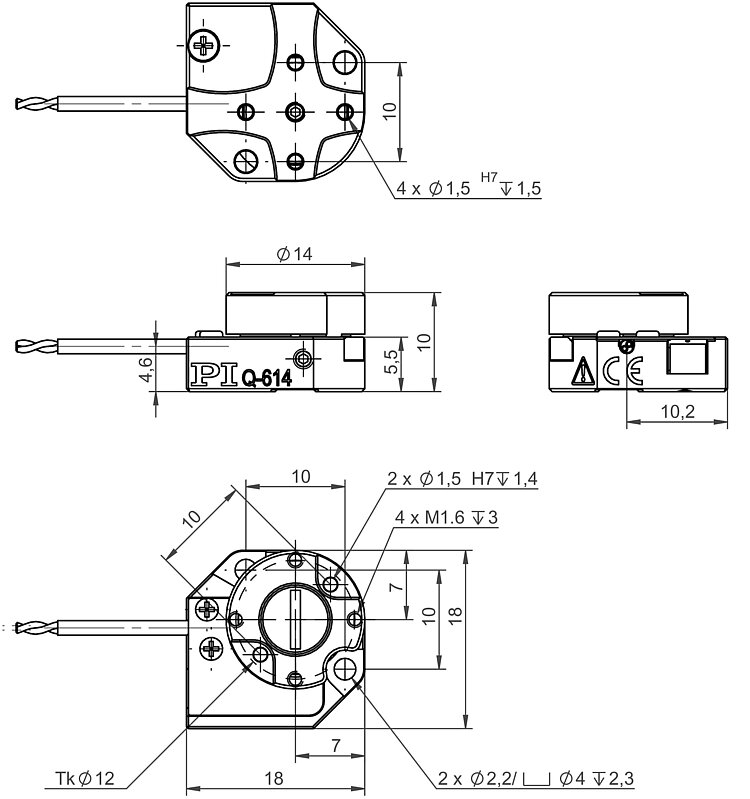

Q-614, dimensions in mm
Q-614 Q-Motion® Miniature Rotation Stage
Product Description Specifications Downloads Quote / Order

Piezoelectric inertia drive

Piezo inertia drives are space-saving and affordable piezo-based drives with relatively high holding forces and a virtually unlimited travel range. The inertia drive principle is based on a single piezoelectric actuator that is controlled with a modified sawtooth voltage provided by special driver electronics. The actuator expands slowly and moves the runner. Due to its inertia, the runner is unable to follow the subsequent fast contraction of the actuator and remains at its position. With an operating frequency of up to 20 kHz, the drives acting directly on the runner and achieve velocities of max. 70 °/s

Application fields

Microassembly, Photonics, Optical alignment, Microscopy, Beamline instrumentation, Semiconductor technology, Testing

Download datasheet specifications quote / order

Specifications

Datasheet

Datasheet Q-614

Version / Date
2018-11-06
pdf - 630 KB
Version / Date
2018-11-06
pdf - 636 KB
Version / Date
2018-11-06
pdf - 706 KB
Download
Download
Download
downloads quote / order

Downloads

Product Note

Product Note

Product Change Notification Q-xxx; N-765

Version / Date
2019-03-26
pdf - 435 KB
English
Download

Datasheet

Datasheet

Datasheet Q-614

Version / Date
2018-11-06
pdf - 630 KB
Version / Date
2018-11-06
pdf - 636 KB
Version / Date
2018-11-06
pdf - 706 KB
Download
Download
Download

Documentation

Documentation

Short Instructions MP139EK

Q-Motion® Positioners: Q-5xx, Q-6xx

Version / Date
4.3.0 03/2024
pdf - 626 KB
Version / Date
4.3.0 03/2024
pdf - 661 KB
Download
Download
Documentation

User Manual MP127

Q-614 Q-Motion Miniature Rotation Stage with 14 mm Turntable Diameter, Piezoelectric Inertia Drive

Version / Date
2015-02-24
pdf - 824 KB
Version / Date
2015-02-23
pdf - 799 KB
quote / order

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Q-614.900

Q-Motion® rotation stage, piezoelectric inertia drive, >360° rotation range, without position sensor for open-loop operation, 5 mNm torque, 14 mm diameter, vacuum compatible to 10-6 hPa

​
Q-614.90U

Q-Motion® rotation stage, piezoelectric inertia drive, >360° rotation range, without position sensor for open-loop operation, 5 mNm torque, 14 mm diameter, vacuum compatible to 10-9 hPa

​
Ask for custom design quote list

How to Get a Quote

Click on QUOTE / ORDER
Add variant to quote list
Fill out quote form
Send price request to PI
We will contact you shortly

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

+65 665 98400info-seasia@pi.ws
Contact us!
