N-331.1LU Vacuum Feedthrough

NEW

Interface Between Air Side and Ultrahigh Vacuum (UHV)

Accessories for N-331.xxU PICMAWalk linear actuators
Closure and port for vacuum chambers
Vacuum compatible to 10^-9 hPa

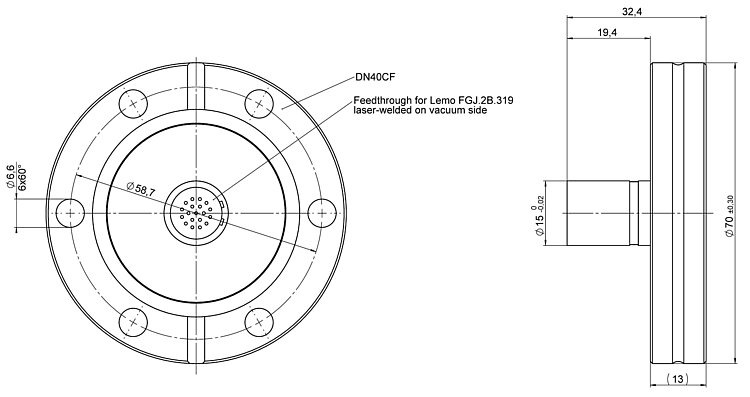

N-331.1LU, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

Connection of standard controllers to vacuum applications

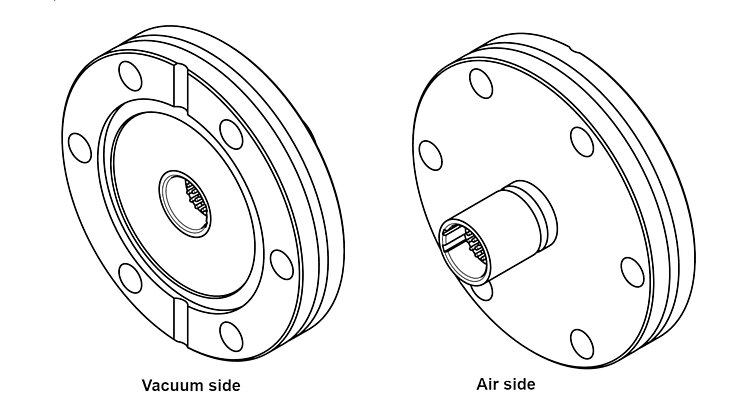

Vacuum feedthroughs are the interface between the linear actuator within the vacuum enclosure and the controller on the air side. They enable standard controllers to be connected to vacuum applications.

Air-side adapter cables are available in different lengths. They are not part of the scope of delivery for the feedthrough.

Download datasheet specifications

Datasheet

Version / Date

2023-03-30

pdf - 368 KB

Version / Date

2023-03-30

pdf - 368 KB

Download

	N-331.1LU
Flange material	Stainless steel 1.4301
Seal material	Aluminum oxide ceramic
Leak rate	1x10^-9
Test voltage	800 V
Maximum current per pin	7 A
Air side connector	LEMO FGJ.2B.319
Vacuum side connector	LEMO FGJ.2B.319
Vacuum class	10⁻⁹ hPa
Operating temperature range	0 to 50 °C
Maximum bake out temperature	150 °C
