L-812.TTx Motion Platform for L-812 Positioners

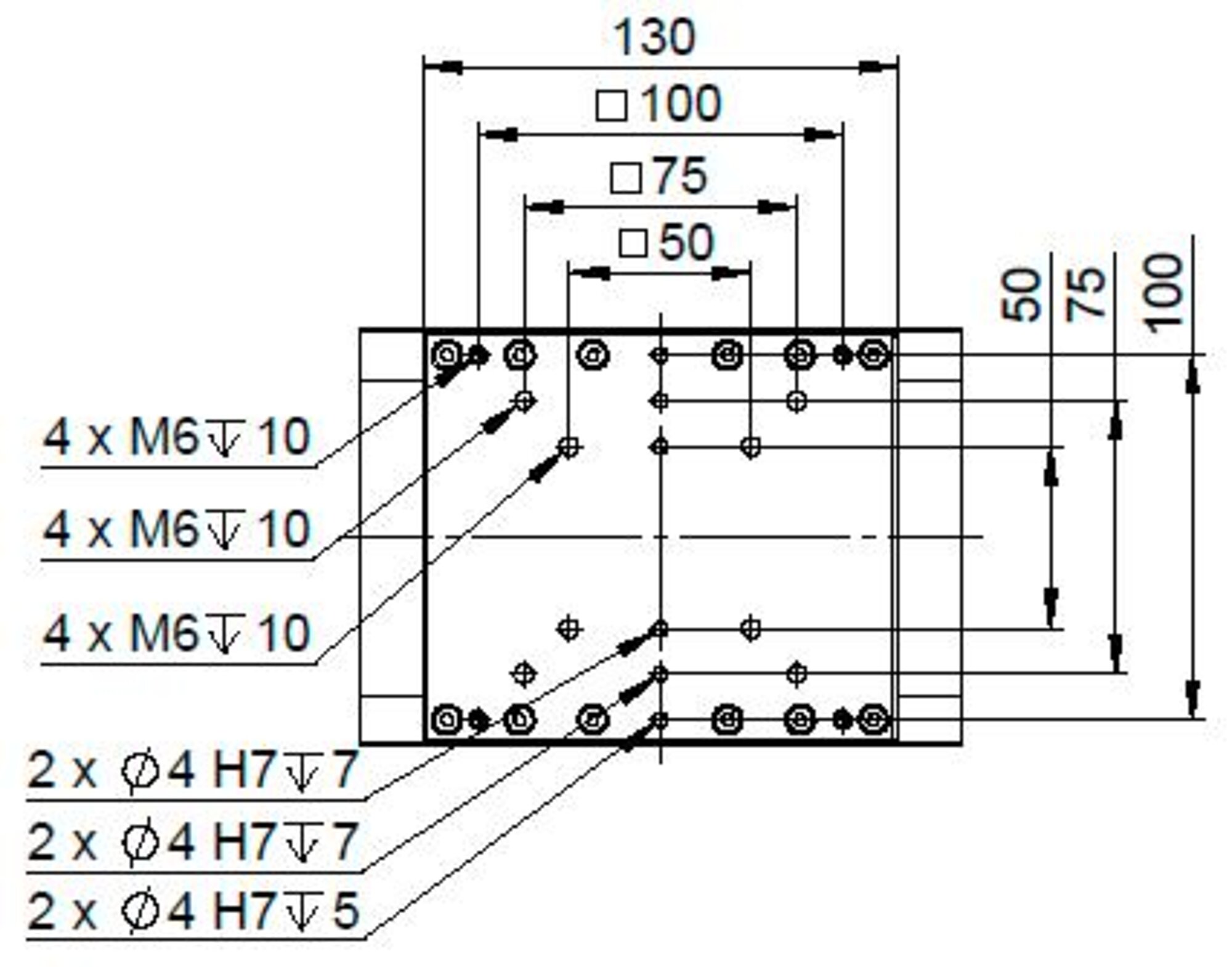

Triple M6 Hole Pattern

L-812.TTx Motion Platform for L-812 Positioners
Product Description Specifications Downloads Quote / Order
  • Hole pattern, 50 mm × 50 mm
  • Hole pattern, 75 mm × 75 mm
  • Hole pattern, 100 mm × 100 mm
  • M6 threaded holes

Product overview

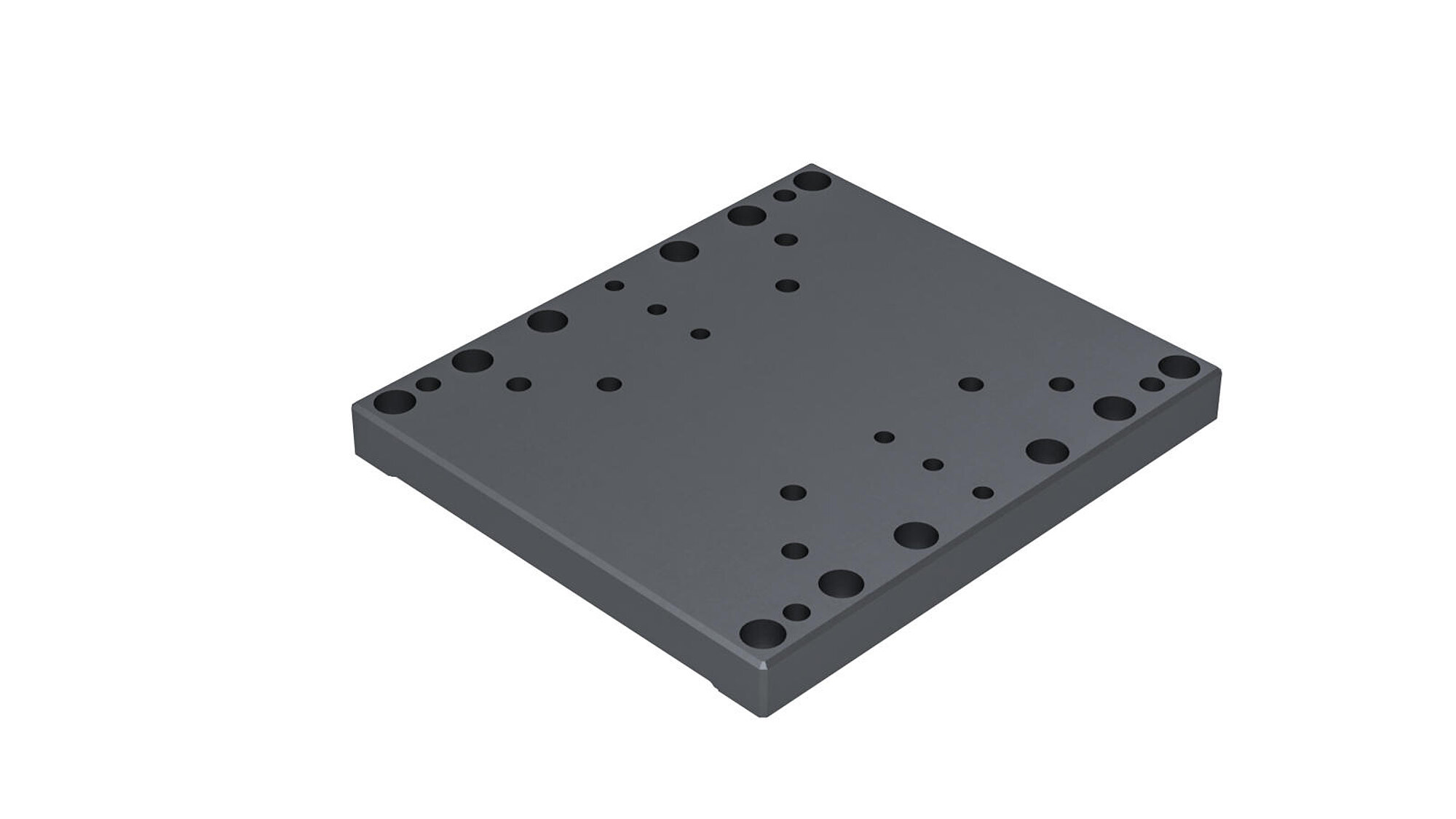

The motion platform is available as optional accessory for the L-812 high-load linear stages.

It offers versatile assembly options with a triple M6 hole pattern.


This content is only available on tablets or desktop devices.

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

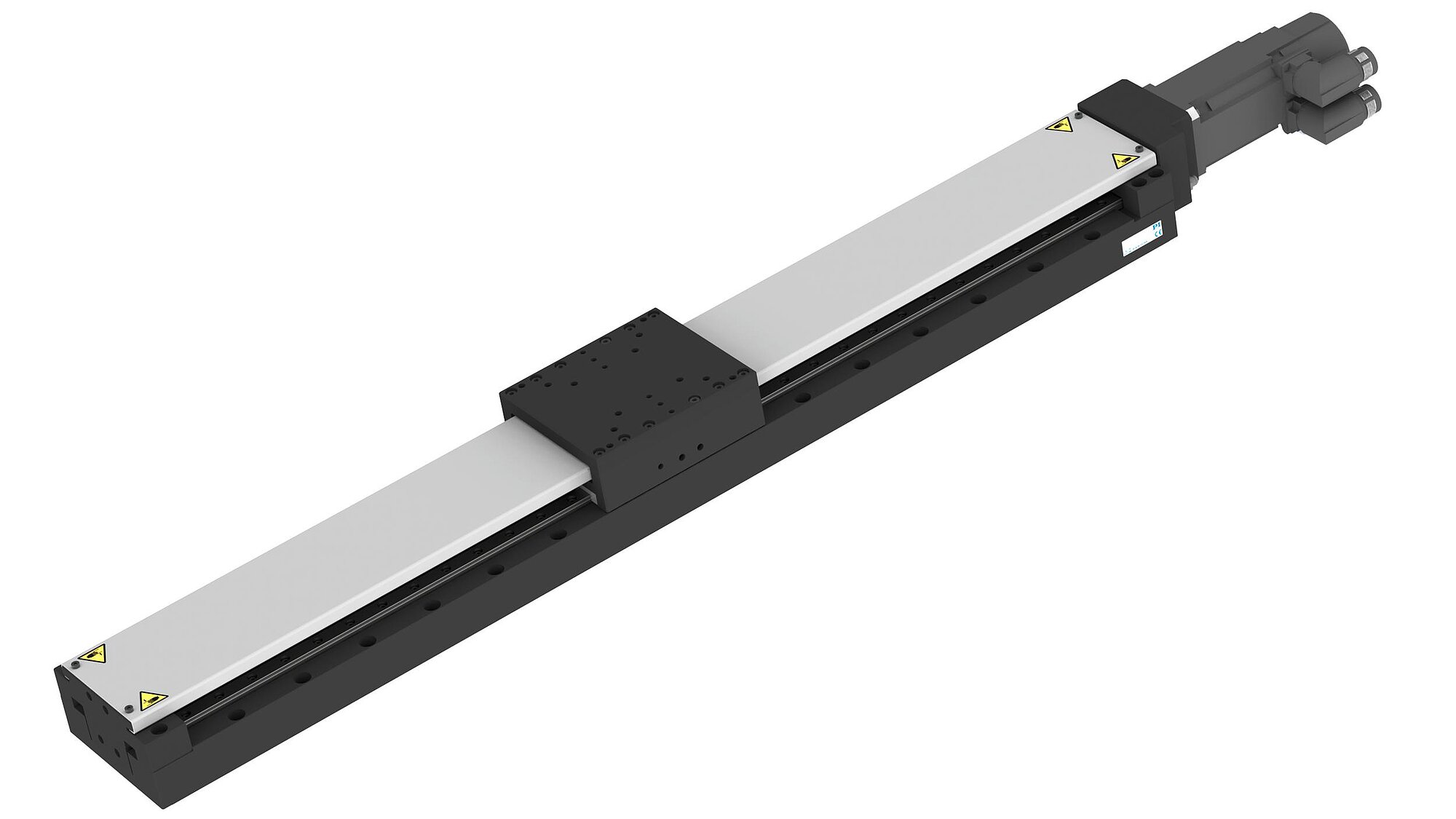

Compatible Products
