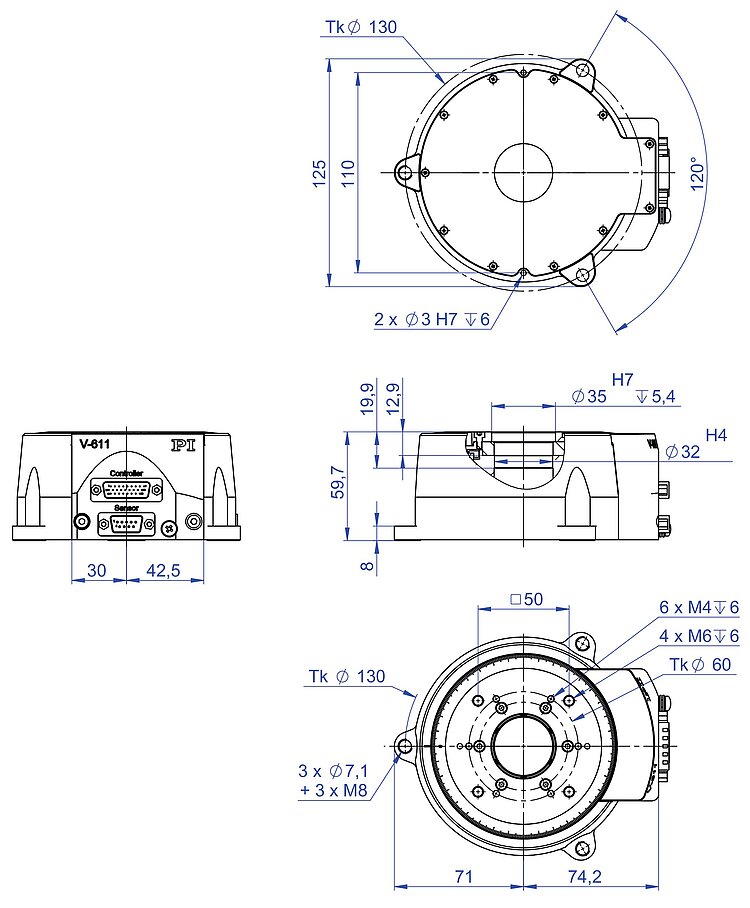

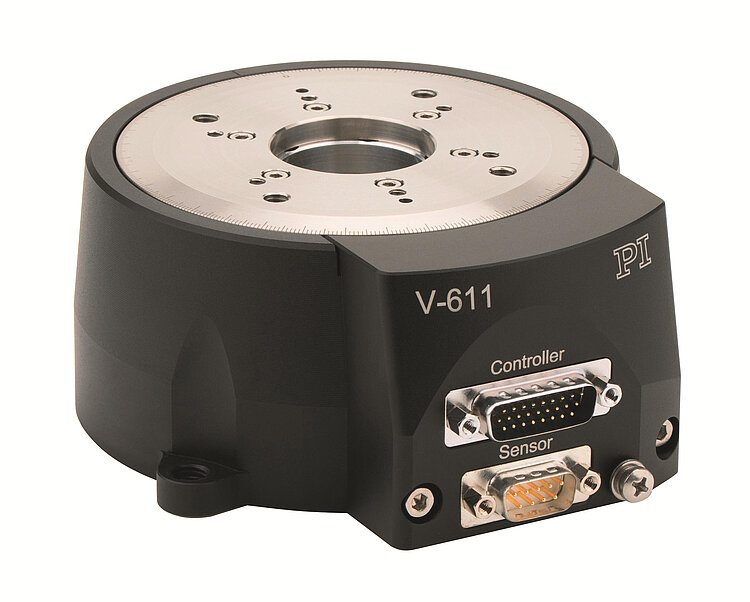

V-611 Rotation Stage

High Load Capacity and Long Lifetime for Industrial Applications

  • Deep groove ball bearings provide high load capacity and long lifetime
  • Clear aperture for transmitted-light applications
  • High velocity and acceleration
  • Iron core 3-phase torque motor
V-611 Rotation Stage
Product Description Specifications Downloads Quote / Order

Iron core 3-phase torque motor

Torque motors are electromagnetic direct drives. They dispense with mechanical components in the drivetrain and transfer the drive force directly and friction-free to the motion platform. The drives reach high velocities and accelerations. Iron core motors are used when forces and accelerations need to be achieved in a limited installation space. The design with iron cores maximizes the magnetic forces and ensures high thermal stability of the drive.

Application fields

Medical industry. Sample inspection. Precision microassembly. Research. Biotechnology. Semiconductor technology. Metrology. Automation.

Specifications

Datasheet

Datasheet V-611

Version / Date
2020-10-07
pdf - 690 KB
Version / Date
2020-10-07
pdf - 692 KB
Version / Date
2021-01-14
pdf - 398 KB

Downloads

Datasheet

Datasheet

Datasheet V-611

Version / Date
2020-10-07
pdf - 690 KB
Version / Date
2020-10-07
pdf - 692 KB
Version / Date
2021-01-14
pdf - 398 KB

Documentation

Documentation

User Manual V611T0003

Rotation stages with torque motor

Version / Date
2021-09-23
pdf - 1 MB
English

3-D Models

3-D Models

3-D model V-611

Version / Date
2022-01-10
zip - 6 MB
Separate connection cable required for motor and sensor connection respectively. Connecting cables are not in the scope of delivery, although this may be started otherwise in the manual. The manual is currently being revised.

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

Compatible Electronics Related Products Services

Applications

Genome Sequencing

Genome Sequencing

Be it in medicine, forensics, or genetics - the genome is the key to new insights for numerous questions. The method known as sequencing-by-synthesis, which used to decipher the genome, has become faster and more precise since it was first developed — the cost has decreased, respectively. The positioning techniques employed in the microscope systems used for this purpose have also contributed to...

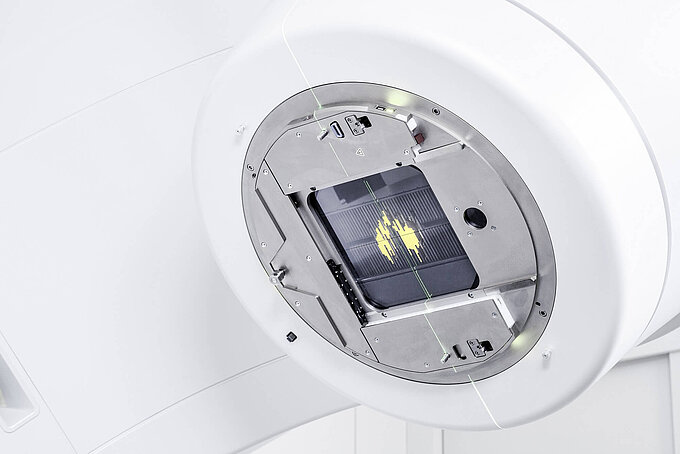

Adaptive Diaphragm Positioning
