- Superior lifetime
- Ideal for dynamic operation
- Flexible, adaptable overall height
- OEM versions available without stranded wires
- UHV-compatible to 10-9 hPa

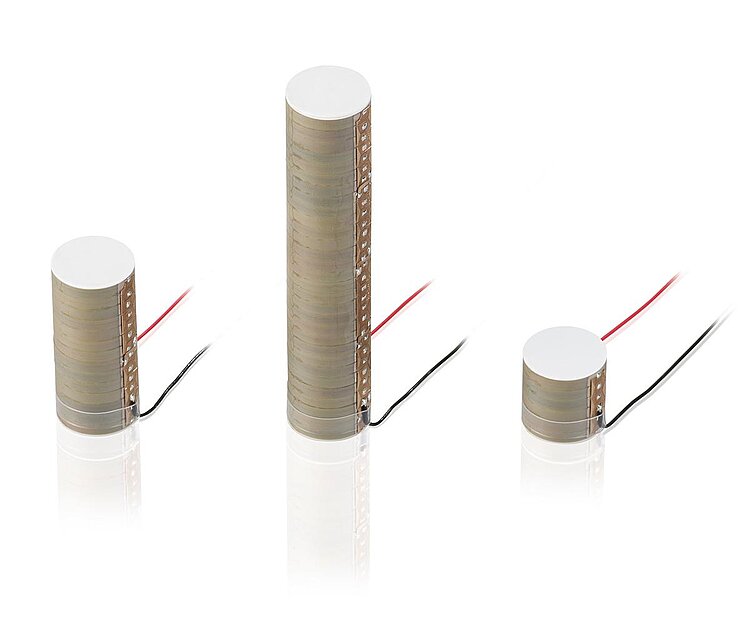

Multilayer stack actuators
The actuators are easily scaled, thanks to the stacked construction, flexible adaptation of the travel range is possible. The round cross section ensures easy integration.
UHV-compatible to 10-9 hPa. The actuators do not outgas and can be baked out at high temperatures.
PICMA® piezo linear actuators
Low operating voltage -20 to 100 V. Ceramic insulation. High reliability, long lifetime.
Different heights, fast mounting according to customer requirements. Variety of shapes. Precision-ground end plates for reduced tolerances Spherical tips.
Fields of application
Industry and research. For laser tuning, microdispensing, life sciences.
User Manual PZ259
P-882 – P-888 PICMA® Stack multilayer piezo actuators, P-080 PICMA® Stack multilayer ring actuators with inner hole, P-088 PICMA® Stack multilayer piezo actuators, round cross section
Short Instructions PZ264
PICMA® Multilayer Piezo Actuators: P-08x, P-88x, PD0xx, PD410, PL0xx, PL1xx, PICMA® Stack, PICMA® Chip, PICMA® Bender
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
Actuators with PTFE-insulated stranded wires
Actuators with solderable contacts
