L-310.023211
Precision Z stage; DC motor; 26 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

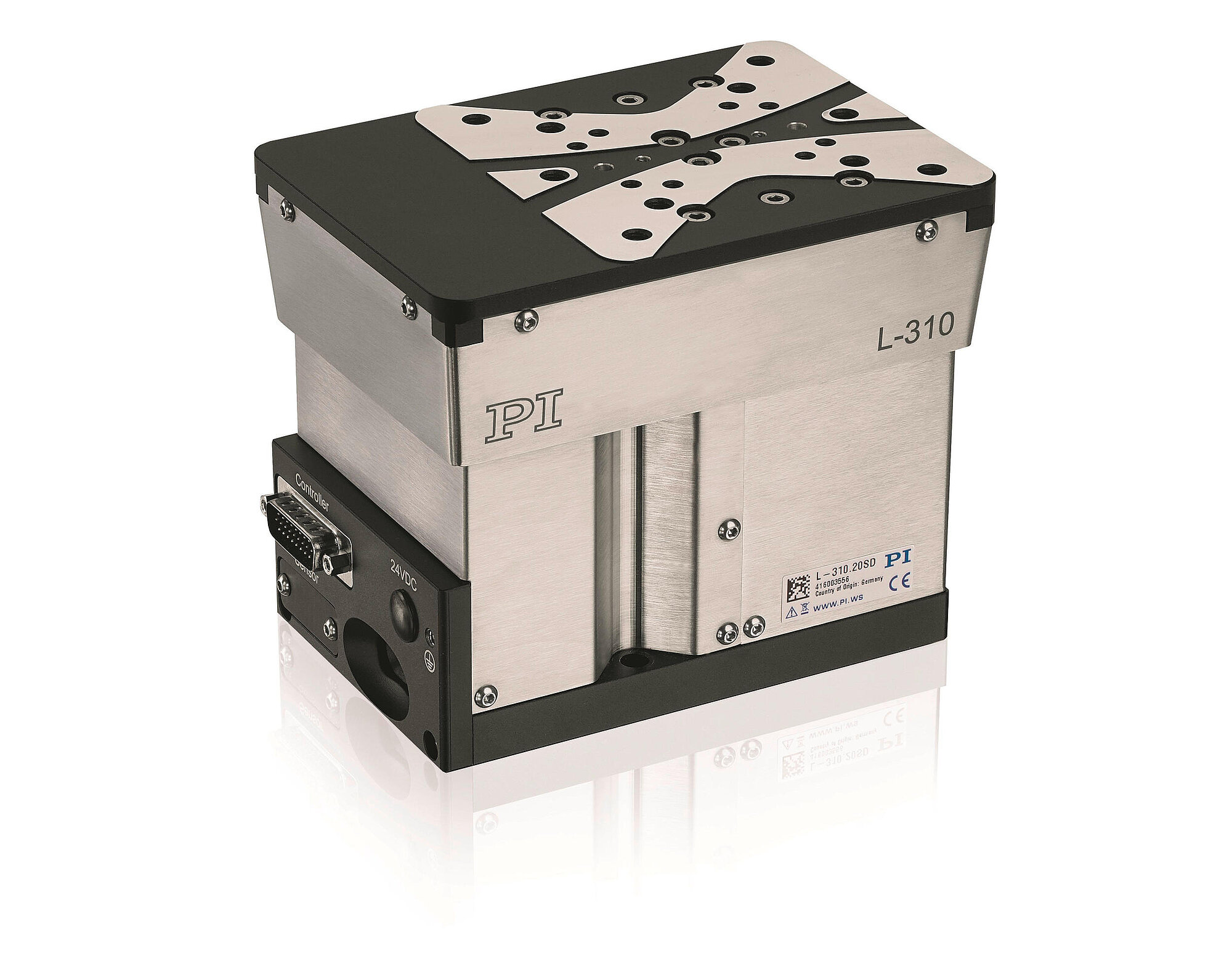

L-310 Precision Z stage
Compact Multi-Axis Combinations with Linear and Rotation Stages
- Travel range 26 mm (1")
- High-resolution encoder
- DC, BLDC, and stepper motors
- Zero-play ball screw
- Load capacity to 10 kg
- Vacuum-compatible variants available

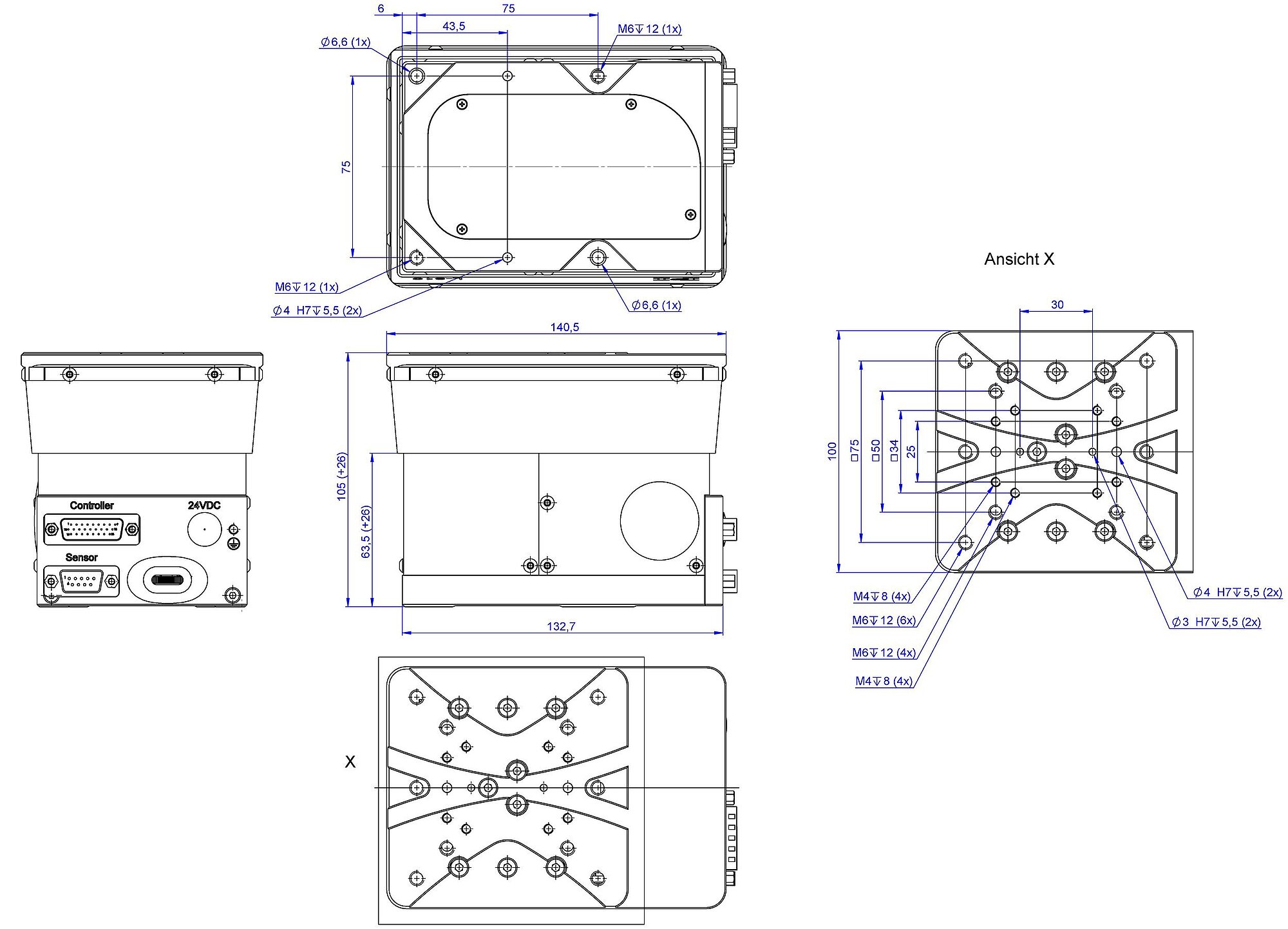

L-310, dimensions in mm
L-310
Precision Z stage
Product Description
Specifications
Downloads
Quote / Order
High guide accuracy and stiffness due to ball screws and crossed roller guides. Stress-relieved aluminum base for high stability. Vacuum-compatible product variants on request. Noncontact limit and reference switches (Hall effect). Reference switch with direction sensing in the middle of the travel range.
Applications and use cases
Precision positioning in industry and research
Applications with high duty cycles
Technology
The following drive types are available:
2-phase stepper motor for high torque even at low velocities and high resolution
DC servo motor
Brushless DC motor (BLDC) for high rotational velocity. Smooth running and low wear, therefore longer lifetime.
The following options are available for position measuring:
Variants with DC motor: Rotary encoder
Optional: Integrated linear encoder, installed centrically.
Noncontact optical linear encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.
Minimum incremental motion and slow motion: In conjunction with an ACS controller (e.g., ECMsm-4B44T-NNNNN), variants with a stepper motor and an integrated linear encoder (L-310.xASD) achieve repeatable minimum incremental motion in the range of the sensor resolution. The same configuration achieves constant low velocities of a few sensor increments per second.
Specifications
Specifications
Motion | Unit | Tolerance | L-310.0232xx | L-310.0252xx | L-310.2xSD |
|---|---|---|---|---|---|
Active axes |
|
| Z | Z | Z |
Travel range | mm |
| 26 | 26 | 26 |
Maximum velocity, unloaded | mm/s |
| 50 | 50 | 15 |
Straightness error in X | µm | typ. | ±3 | ±3 | ±3 |
Straightness error in Y | µm | typ. | ±3 | ±3 | ±3 |
Angular error around X | µrad | typ. | ±150 | ±150 | ±150 |
Angular error around Y | µrad | typ. | ±150 | ±150 | ±150 |
Angular error around Z | µrad | typ. | ±150 | ±150 | ±150 |
Positioning: variants with DC motor) | Unit | Tolerance | L-310.023211 | L-310.023212 | L-310.023232 |
|---|---|---|---|---|---|
Minimum incremental motion | µm | typ. | 0.2 | 0.2 | 0.3 |
Unidirectional repeatability | µm | typ. | ±0.1 | ±0.1 | ±0.15 |
Bidirectional repeatability | µm | typ. | 0.4 | 0.4 | 4 |
Integrated sensor |
|
| Incremental linear encoder | Incremental linear encoder | — |
Motor encoder |
|
| — | — | Incremental rotary encoder |
Sensor signal |
|
| Sin/cos, 1 V peak-to-peak | A/B quadrature, RS-422 | A/B quadrature, RS-422 |
Sensor signal period | µm |
| 20 | — | — |
Sensor resolution | nm |
| — | 50 | — |
Resolution of motor encoder | Counts/rev. |
| — | — | 16384 |
Positioning: variants with brushless DC motor | Unit | Tolerance | L-310.025212 | L-310.025232 |
|---|---|---|---|---|
Minimum incremental motion | µm | typ. | 0.2 | 0.3 |
Unidirectional repeatability | µm | typ. | ±0.1 | ±0.15 |
Bidirectional repeatability | µm | typ. | 0.4 | 4 |
Integrated sensor |
|
| Incremental linear encoder | — |
Motor encoder |
|
| — | Incremental rotary encoder |
Sensor signal |
|
| A/B quadrature, RS-422 | A/B quadrature, RS-422 |
Sensor resolution | nm |
| 50 | — |
Resolution of motor encoder | Counts/rev. |
| — | 20000 |
Positioning: variants with 2-phase stepper motor | Unit | Tolerance | L-310.20SD | L-310.2ASD |
|---|---|---|---|---|
Minimum incremental motion | µm | typ. | 0.3 | 0.05 |
Unidirectional repeatability | µm | typ. | ±0.15 | ±0.05 |
Bidirectional repeatability | µm | typ. | 4 | 0.4 |
Integrated sensor |
|
| — | Incremental linear encoder |
Sensor signal |
|
| — | Sin/cos, 1 V peak-to-peak |
Sensor signal period | µm |
| — | 20 |
Mechanical properties | Unit | Tolerance | L-310.0232xx | L-310.0252xx | L-310.2xSD |
|---|---|---|---|---|---|
Permissible push force in Y | N | max. | 100 | 100 | 100 |
Permissible push force in Z | N | max. | 100 | 100 | 55 |
Permissible torque in θX | Nm | max. | 40 | 40 | 40 |
Permissible torque in θY, θZ | Nm | max. | 80 | 80 | 80 |
Holding force (passive) | N |
| — | — | 50 |
Moved mass, unloaded | kg |
| 0.9 | 0.9 | 0.9 |
Overall mass | kg |
| 2.7 | 2.7 | .20SD: 2.7 .2ASD: 2.8 |
Drive screw type |
|
| Ball screw | Ball screw | Ball screw |
Spindle pitch | mm |
| 1 | 1 | 1 |
Guide |
|
| Crossed roller guide | Crossed roller guide | Crossed roller guide |
Material |
|
| Anodized aluminum | Anodized aluminum | Anodized aluminum |
Miscellaneous | Unit | Tolerance | L-310.0232xx | L-310.0252xx | L-310.2xSD |
|---|---|---|---|---|---|
Operating temperature range | °C |
| 5 to 40 | 5 to 40 | 5 to 40 |
Drive connector |
|
| HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) |
Sensor connector |
|
| .0232x2: — .023211: D-sub 9 (m) | — | .20SD: — .2ASD: D-sub 9 (m) |
Recommended controllers/drivers |
|
| C-863, C-885 with C-863.20C885 C-884 G-901, G-910 ACS modular controller | G-901, G-910 ACS modular controller | C-663.12, C-885 with C-663.12C885 G-901, G-910 ACS modular controller |
At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.
Downloads
Datasheet
Documentation
Documentation
User Manual MP157
L-310 Precision Z Stage
Version / Date
1.4 2022-09-20
pdf - 1 MB
Version / Date
1.4 2022-09-20
pdf - 1 MB
3D Models
3D Models
L-310 3D model
Version / Date
2017-01-10
zip - 3 MB
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
L-310.023212
Precision Z stage; DC motor; 26 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental linear encoder, 50 nm sensor resolution, A/B quadrature, RS-422
L-310.023232
Precision Z stage; DC motor; 26 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 16384 counts/rev sensor resolution, A/B quadrature, RS-422
L-310.025212
Precision Z stage; brushless DC motor; 26 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental linear encoder, 50 nm sensor resolution, A/B quadrature, RS-422
L-310.025232
Precision Z stage; brushless DC motor; 26 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev sensor resolution, A/B quadrature, RS-422
L-310.20SD
Precision Z stage; 2-phase stepper motor; 26 mm travel range; 55 N load capacity; 15 mm/s maximum velocity; ball screw
L-310.2ASD
Precision Z stage; 2-phase stepper motor; 26 mm travel range; 55 N load capacity; 15 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak
