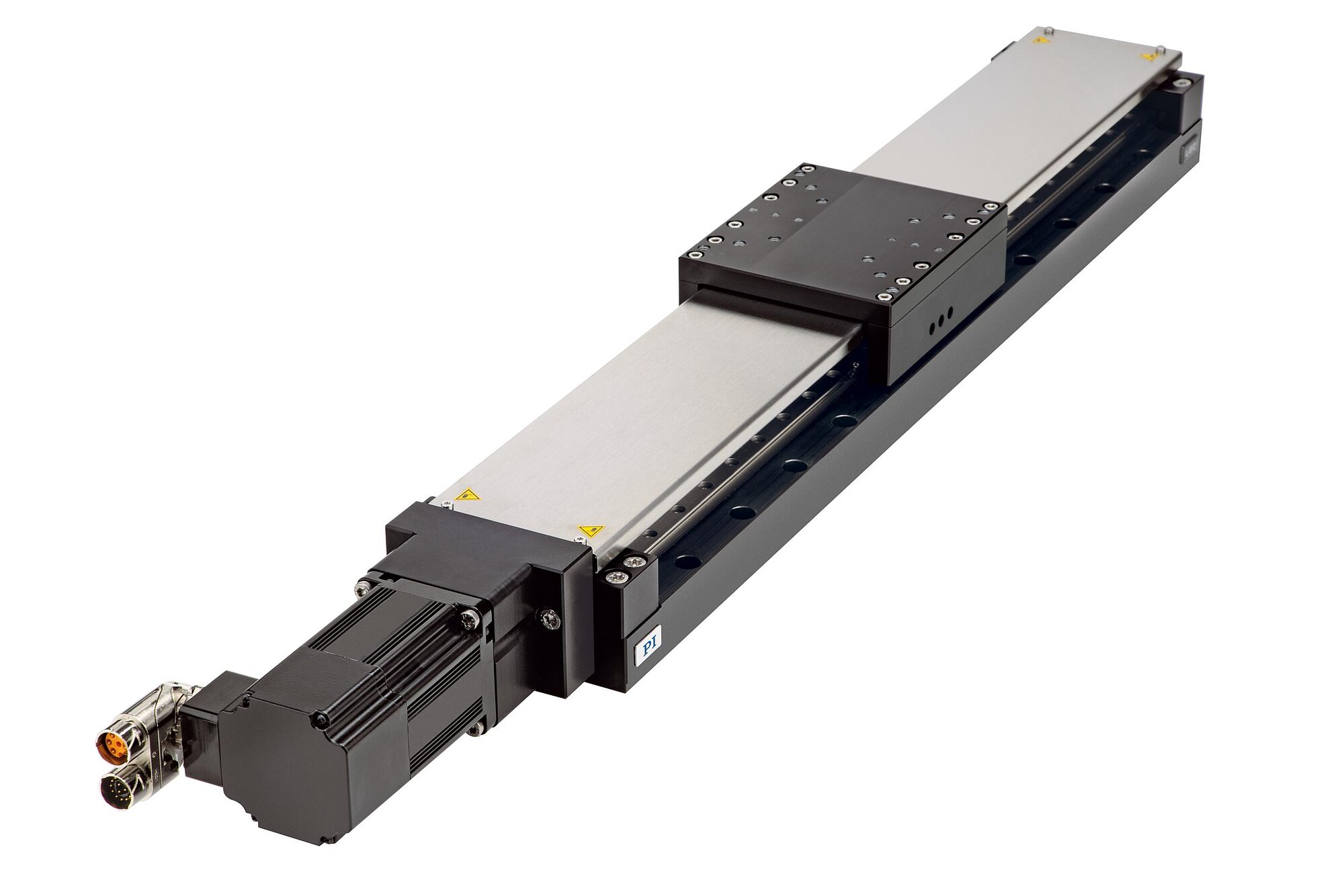

- Width 114 mm, travel range to 610 mm

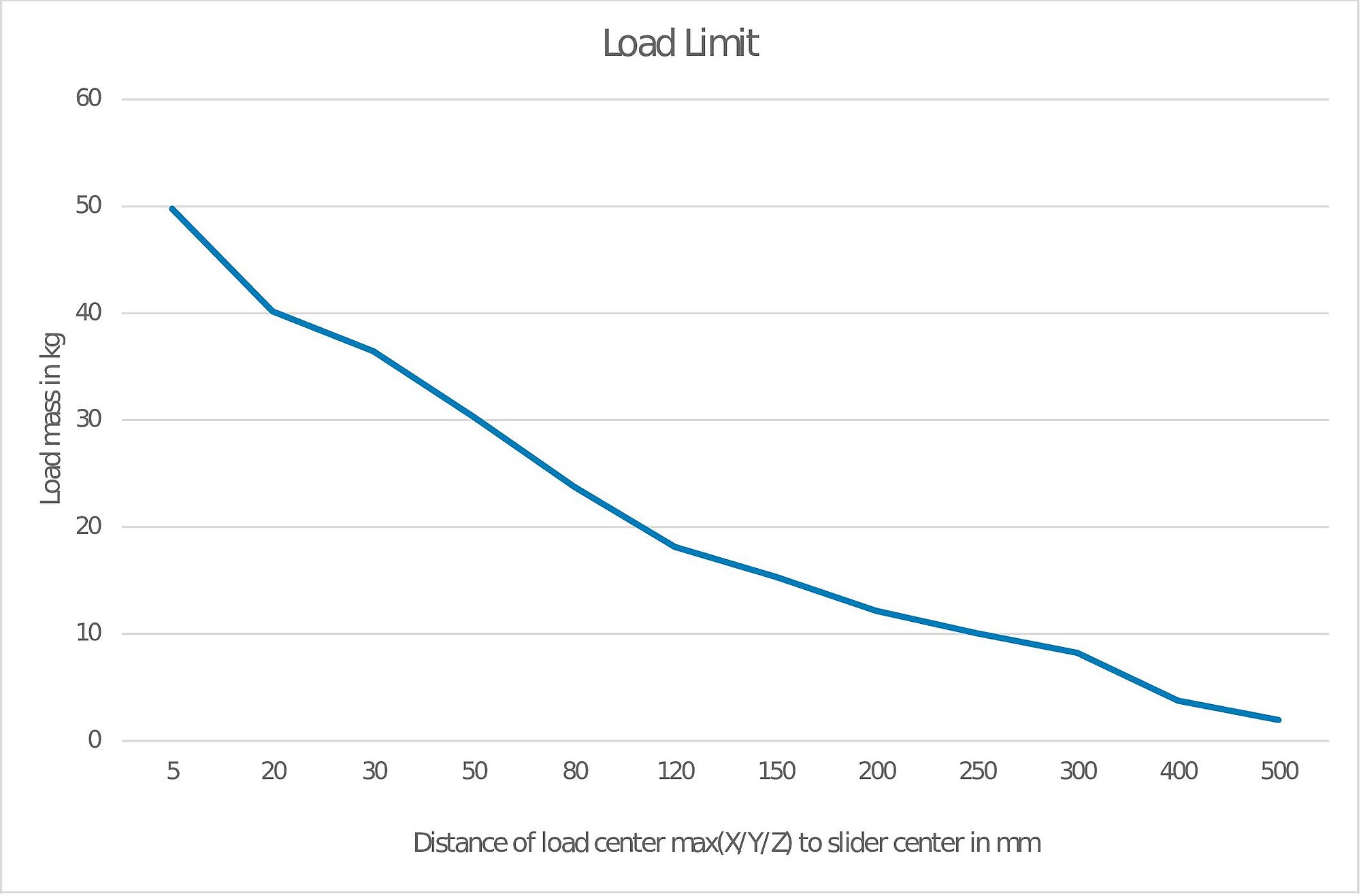

- Precision ball screw, load capacity to 50 kg
- Stepper or servo motor
- Compact design thanks to models with folded drivetrain
- Models with holding brake for vertical mounting

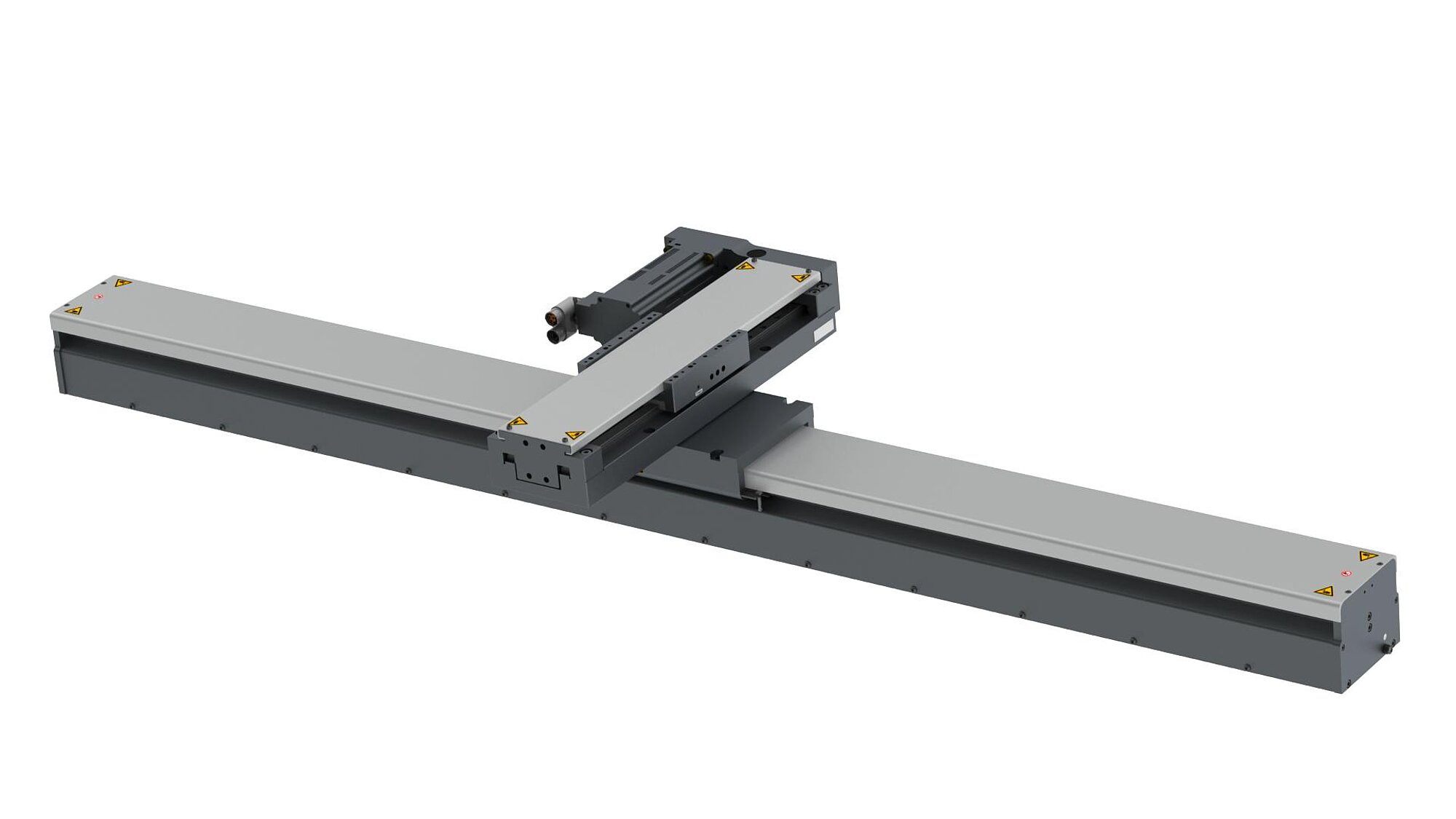

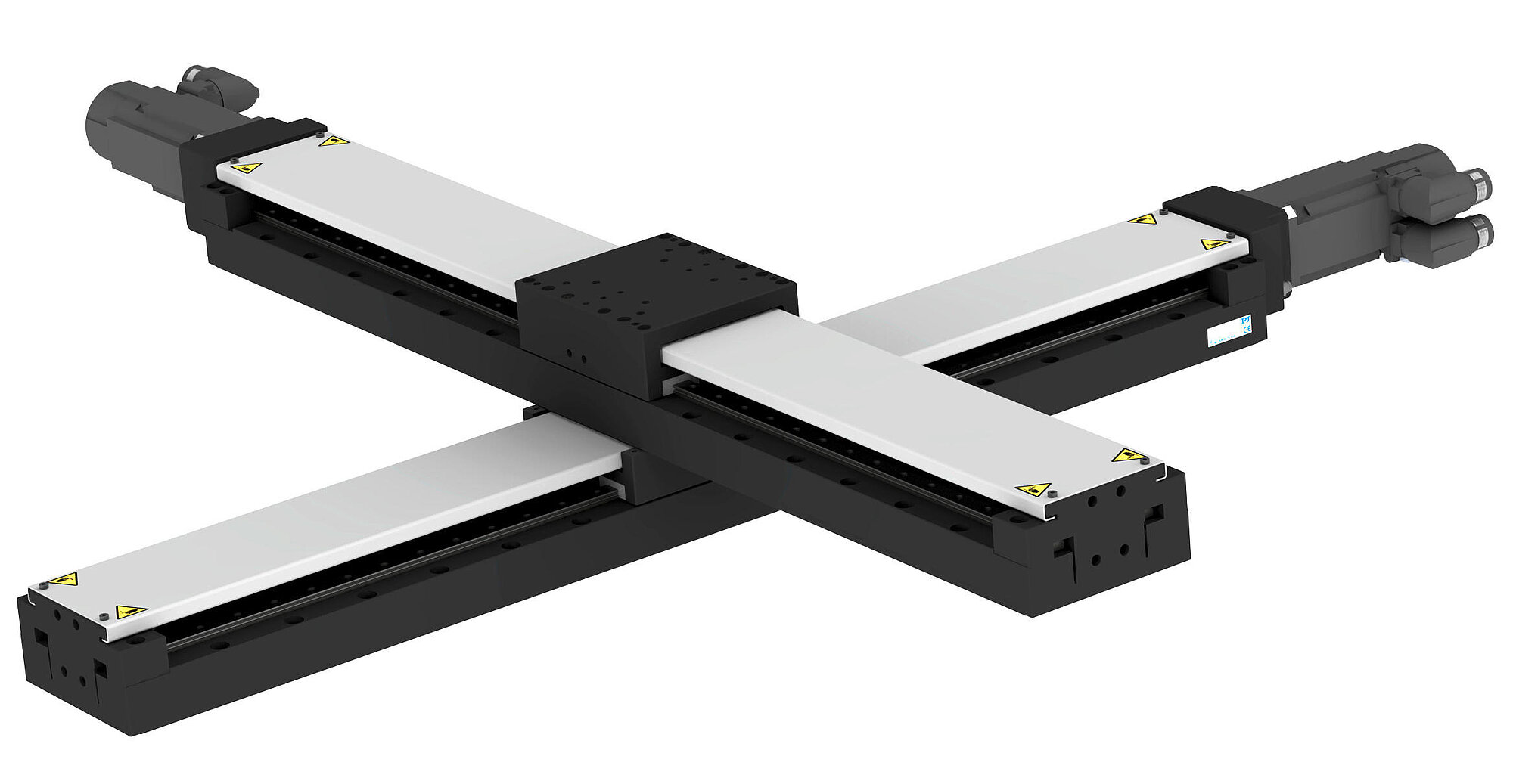

Powerful linear stage for use in demanding industrial applications
Precision ball screws, high-performance stepper or synchronous servo motors, heavy-duty recirculating ball bearings, and precision rotary encoders enable continuous and reliable operation under high load. The optional holding brake allows use as Z axis. The ball screw can be relubricated from the outside without disassembling to ensure high reliability and long lifetimes.
The recirculating ball bearing guides of the L-812 series are designed for high load capacity and dynamics. The high resolution of the motors allows improved tracking performance, smaller tracking errors, and improved settling times.
- Stepper or synchronous servo motor
- Holding brake
- Rotary encoder, incremental or absolute-measuring

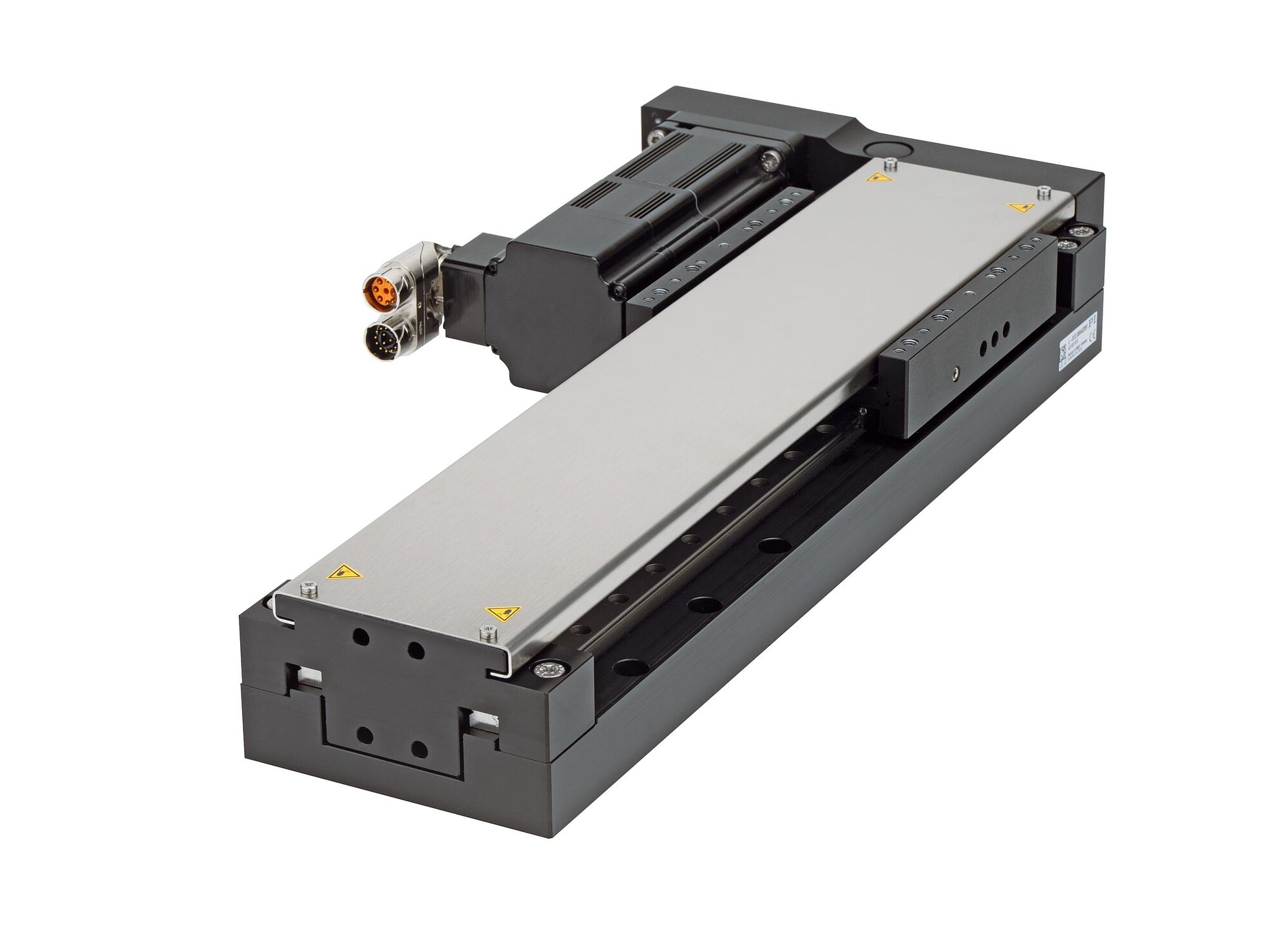

- Folded drivetrain for reducing the overall length
Synchronous servo motor
These motors have high positioning accuracy and high overload capacity over a large rotation speed range. High torque and low inertia ensure the high dynamics of the drives. The long lifetime, high performance, and robustness of these motors allow excellent results in industrial automation applications.
Powerful and low-vibration 2-phase stepper motors allow for accurate positioning even without position control.

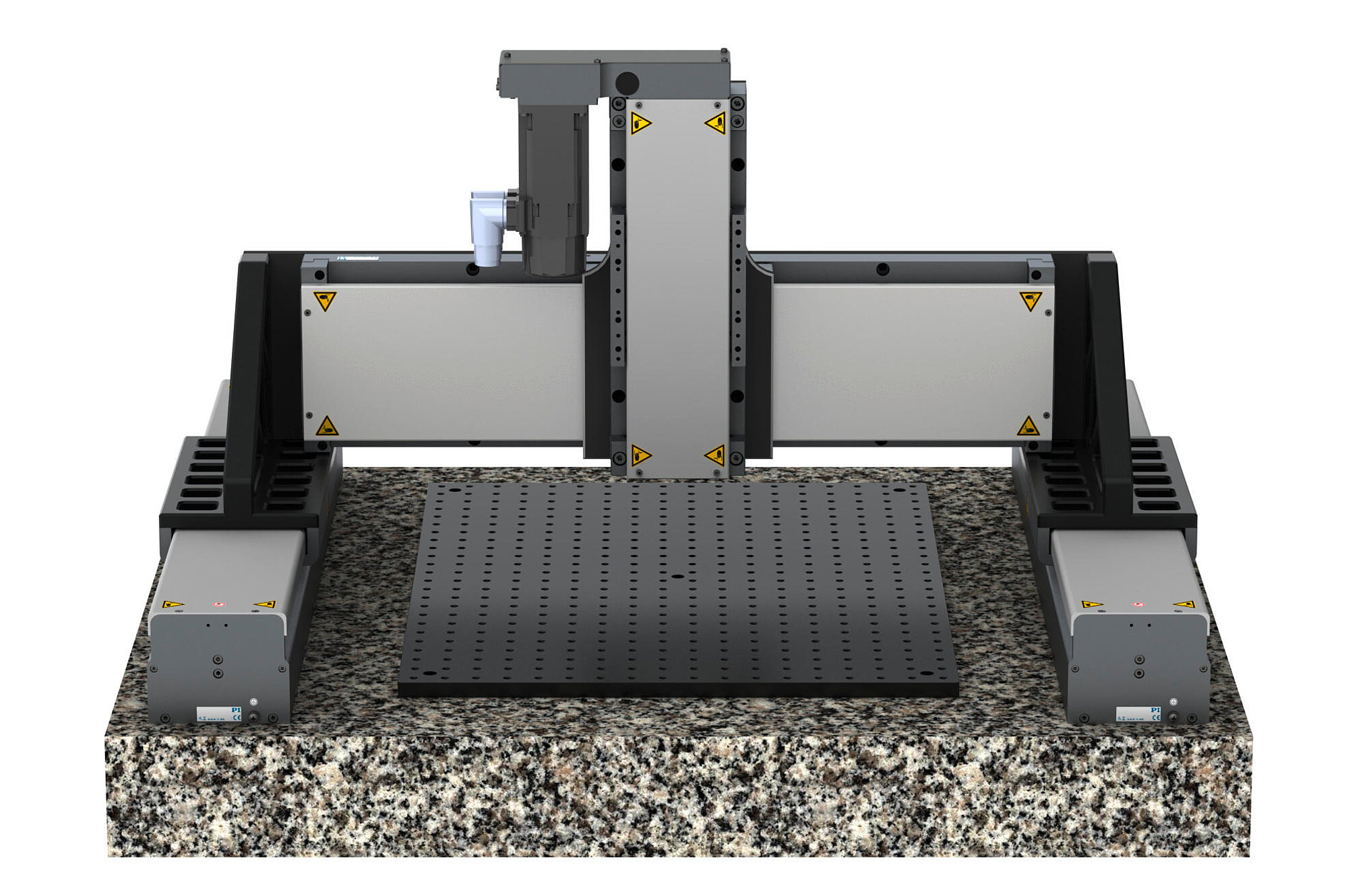

Electronics production: Microassembly. Sensor / camera placement.
Laser materials processing: Laser micromachining.
Industrial inkjet printing. Matrix plate and printed circuit board production.
Test & inspection.
Manufacturing of medical equipment: Hermetic welding. Robotic systems for gene laboratories.
SpecificationsThis content is only available on tablets or desktop devices.
User Manual L812UM0002

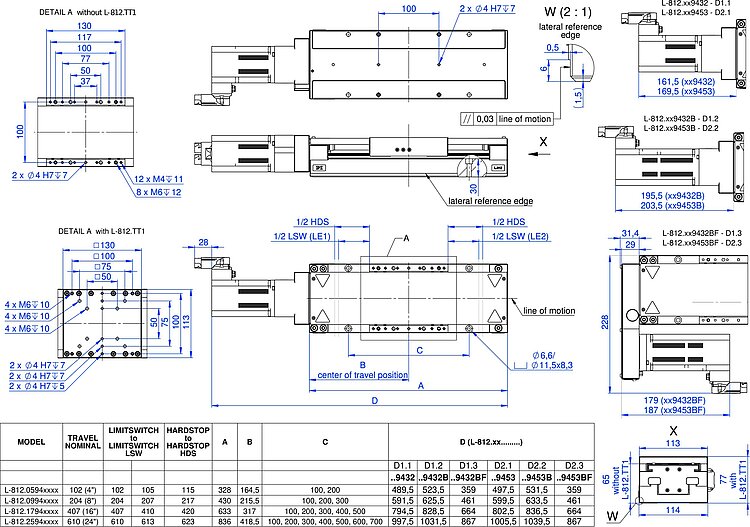

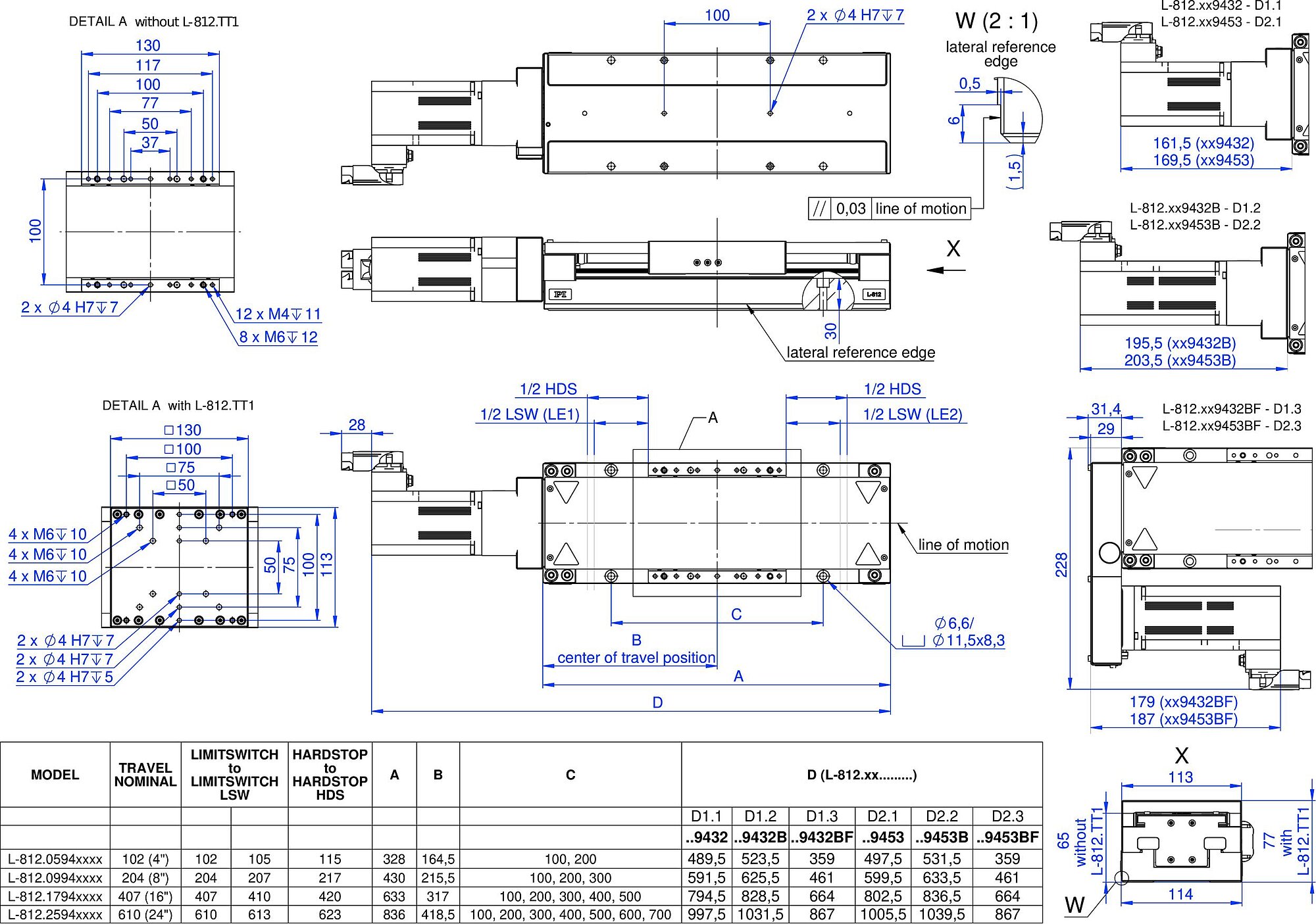

L-812.xx9432 High-Load Linear Stage
User Manual L812UM0001

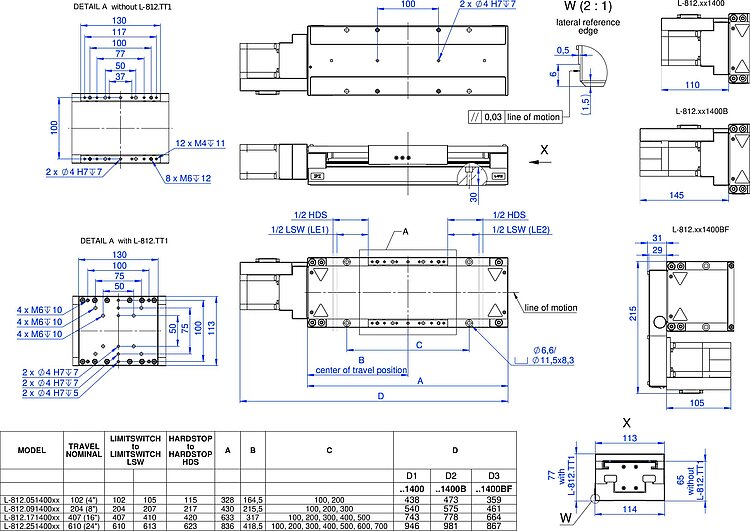

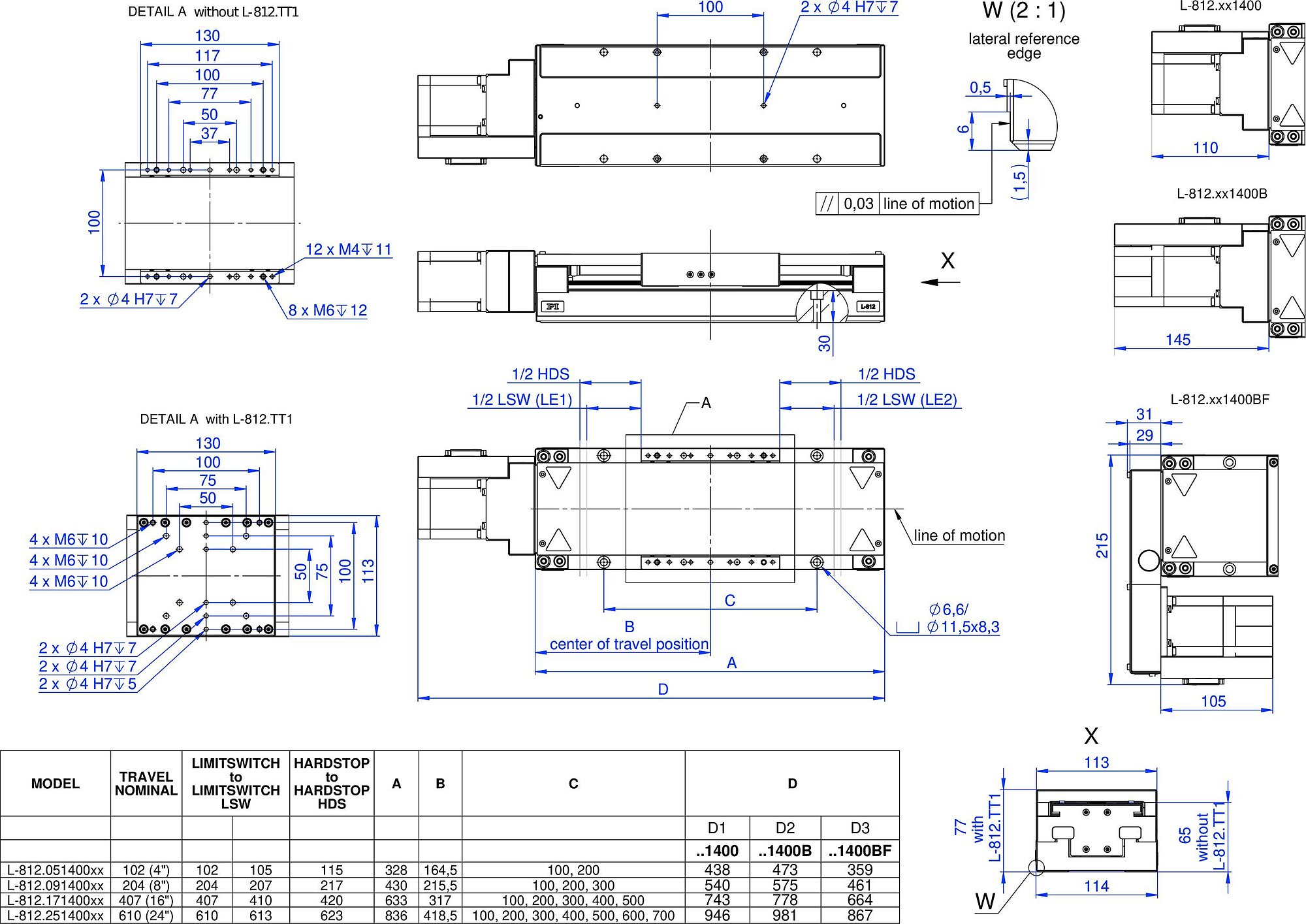

L-812.xx1400 Linear Stage with Stepper Motor
