High-load linear stage; ironless 3-phase linear motor; 280 mm width; 400 mm travel range; 1500 N load capacity; 3000 mm/s maximum velocity; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak
NEW

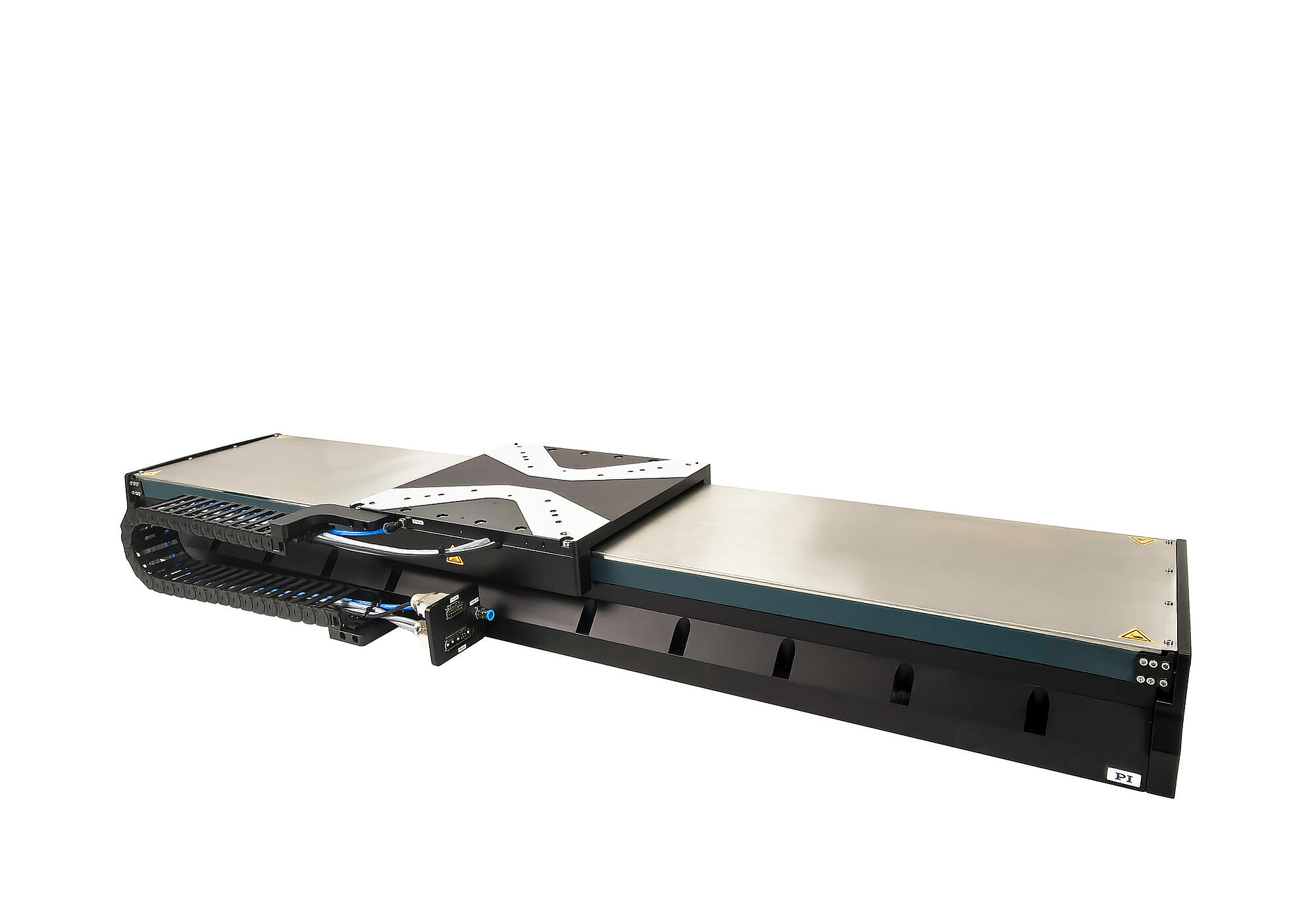

V-D27 High-Load Linear Stage
High Performance • Linear Motor • Cost Effective • Fast Delivery
- Long travel range (400 mm to 800 mm)
- Load capacity in Z up to 1500 N
- High precision linear encoder
- Maintenance-free guideway
- Linear motor with direct drive

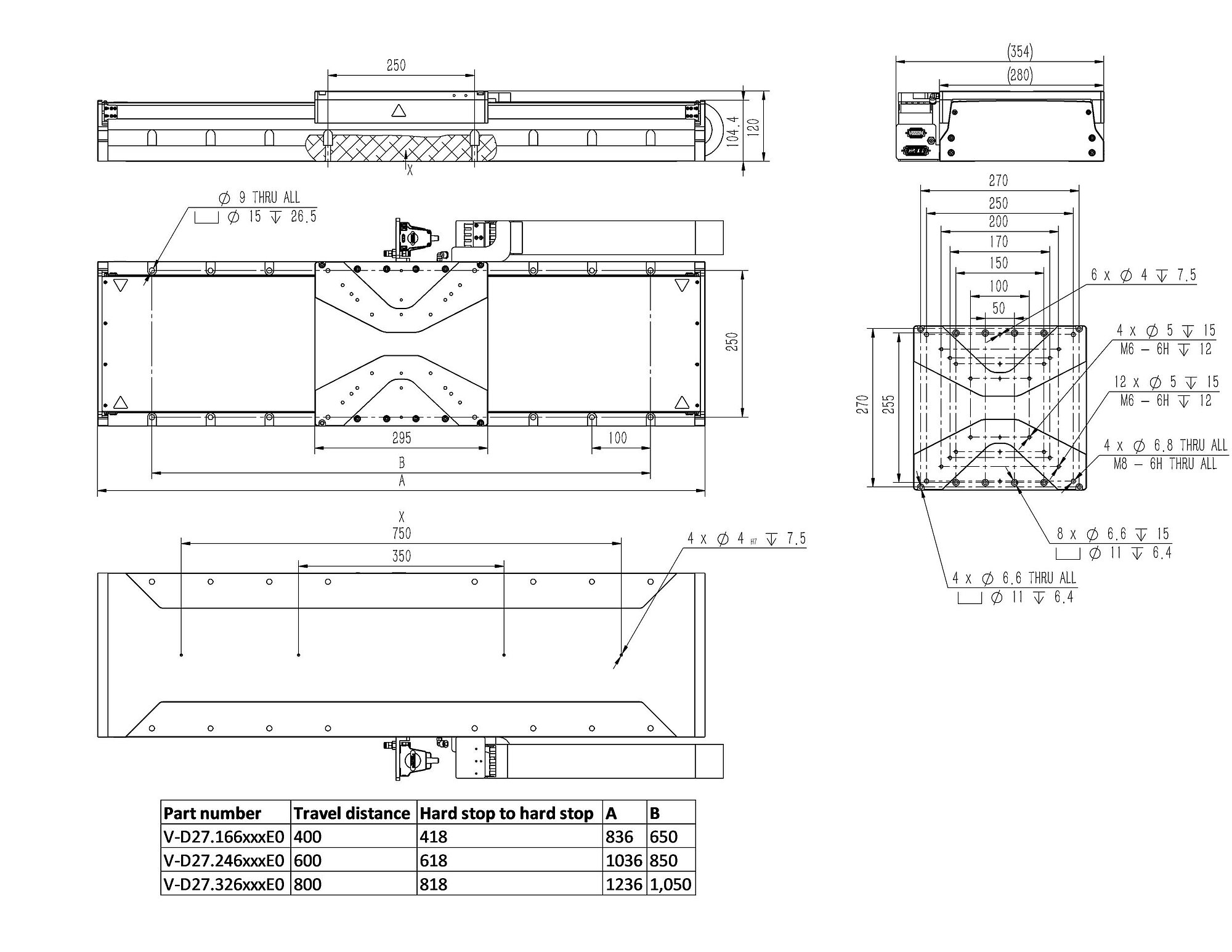

V-D27, dimensions in mm
V-D27 High-Load Linear Stage
Product Description
Specifications
Downloads
Quote / Order
Pioneering design
High-performance ironless linear motors, heavy-duty recirculation ball bearings and non-contact linear encoder are used. Stress-relieved aluminum base for highest stability and high accuracy. Compared to the competition, the recirculating ball bearings of the V-D27 series offer a higher load capacity and allow higher dynamics. The high resolution of the encoder allows improved tracking performance.
Direct-drive linear motor
The ironless linear motor drives the stage without mechanical contact and cogging force, which leads to zero friction, zero backlash and excellent dynamic performance and bandwidth. The drives reach high velocities and accelerations. Ironless motors are particularly suitable for positioning tasks with the highest demands on precision because there is no undesirable interaction with the permanent magnets.
Highly accurate position measuring system
Noncontact optical encoders measure the position directly at the platform with the greatest accuracy.
Application fields
Laser cutting. Scanning. Digital printing. Electronics assembly and inspection. AOI (Automatic Optical Inspection). Automation. Flat screen manufacturing. Applications with high demands on dynamics, precision, smooth scan motion, short settling times, and low tracking error.
Specifications
Specifications
Select a travel range:
| Motion | V-D27.166211E0 | V-D27.246211E0 | V-D27.326211E0 | Tolerance |
|---|---|---|---|---|
| Active axes | X | X | X | |
| Travel range in X | 400 mm | 600 mm | 800 mm | |
| Maximum velocity in X, unloaded | 3000 mm/s | 3000 mm/s | 3000 mm/s | |
| Straightness error in Y (straightness) | ± 4 µm | ± 6 µm | ± 8 µm | typ. |
| Straightness error in Z (flatness) | ± 2 µm | ± 3 µm | ± 4 µm | typ. |
| Angular error around Y (pitch) | ± 20 µrad | ± 30 µrad | ± 40 µrad | typ. |
| Angular error around Z (yaw) | ± 40 µrad | ± 50 µrad | ± 60 µrad | typ. |
| Positioning | V-D27.166211E0 | V-D27.246211E0 | V-D27.326211E0 | Tolerance |
| Minimum incremental motion in X | 0.1 µm | 0.1 µm | 0.1 µm | typ. |
| Positioning accuracy in X, calibrated | ± 0.5 µm | ± 0.75 µm | ± 1 µm | typ. |
| Positioning accuracy in X, uncalibrated | ± 4 µm | ± 5 µm | ± 8 µm | typ. |
| Bidirectional repeatability in X | 0.6 µm | 0.8 µm | 1 µm | typ. |
| Limit switches | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | |
| Integrated sensor | Incremental linear encoder | Incremental linear encoder | Incremental linear encoder | |
| Sensor signal | Sin/cos, 1 V peak-peak | Sin/cos, 1 V peak-peak | Sin/cos, 1 V peak-peak | |
| Sensor signal period | 20 µm | 20 µm | 20 µm | |
| System resolution in X | 5 nm | 5 nm | 5 nm | |
| Drive Properties | V-D27.166211E0 | V-D27.246211E0 | V-D27.326211E0 | Tolerance |
| Drive type | Ironless 3-phase linear motor | Ironless 3-phase linear motor | Ironless 3-phase linear motor | |
| Nominal voltage | 220 V | 220 V | 220 V | |
| Nominal current, RMS | 5.8 A | 5.8 A | 5.8 A | typ. |
| Peak current, RMS | 29.5 A | 29.5 A | 29.5 A | typ. |
| Drive force in X | 290 N | 290 N | 290 N | typ. |
| Peak force in X | 1460 N | 1460 N | 1460 N | |
| Force constant | 50 N/A | 50 N/A | 50 N/A | |
| Motor constant | 25.4 N/√W | 25.4 N/√W | 25.4 N/√W | typ. |
| Time constant | 1.8 ms | 1.8 ms | 1.8 ms | |
| Resistance phase-phase | 2.58 Ω | 2.58 Ω | 2.58 Ω | typ. |
| Inductance phase-phase | 4.6 mH | 4.6 mH | 4.6 mH | |
| Back EMF phase-phase | 41 V·s/m | 41 V·s/m | 41 V·s/m | max. |
| Pole pitch N-N | 57 mm | 57 mm | 57 mm | |
| Mechanical Properties | V-D27.166211E0 | V-D27.246211E0 | V-D27.326211E0 | Tolerance |
| Permissible push force in Z | 1500 N | 1500 N | 1500 N | max. |
| Moved mass in X, unloaded | 8500 g | 8500 g | 8500 g | |
| Guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | |
| Overall mass | 60000 g | 70000 g | 80000 g | |
| Material | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | |
| Miscellaneous | V-D27.166211E0 | V-D27.246211E0 | V-D27.326211E0 | Tolerance |
| Operating temperature range | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | |
| Connector | HD D-sub 9W4 (m) | HD D-sub 9W4 (m) | HD D-sub 9W4 (m) | |
| Sensor connector | D-sub 15 (m) | D-sub 15 (m) | D-sub 15 (m) | |
| Recommended controllers/drivers | S-C02-2CST, G-901.R319, ACS modular controller | S-C02-2CST, G-901.R319, ACS modular controller | S-C02-2CST, G-901.R319, ACS modular controller |
At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.
Downloads
Datasheet
Documentation
Documentation
User Manual VD27UM0001
V-D27.XXxxxxE0 HIGH-LOAD LINEAR STAGE
Version / Date
2024-05-23
pdf - 2 MB
English
3D Models
3D Models
V-D27 3D Model
Version / Date
2024-05-23
zip - 27 MB
