- Outstanding lifetime due to PICMA® piezo actuators
- Travel range to 90 µm
- Compact housing
- Push force capacity to 1000 N
- Pull force capacity to 50 N
- µs response time
- Subnanometer resolution
- Versions with ball tip, vacuum versions
- Static and dynamic precision positioning
- Fiber positioning
- Laser tuning
Outstanding lifetime thanks to PICMA® piezo actuators
The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.
Suitable for sophisticated vacuum applications
Piezo actuators do not require lubrication and do not cause abrasion. The all-ceramic isolated PICMA® actuators also do not require polymer isolation and are therefore ideal for vacuum applications.
Short Instructions PZ303
Housed PICMA® Actuators to 100 V
User Manual P840M0001

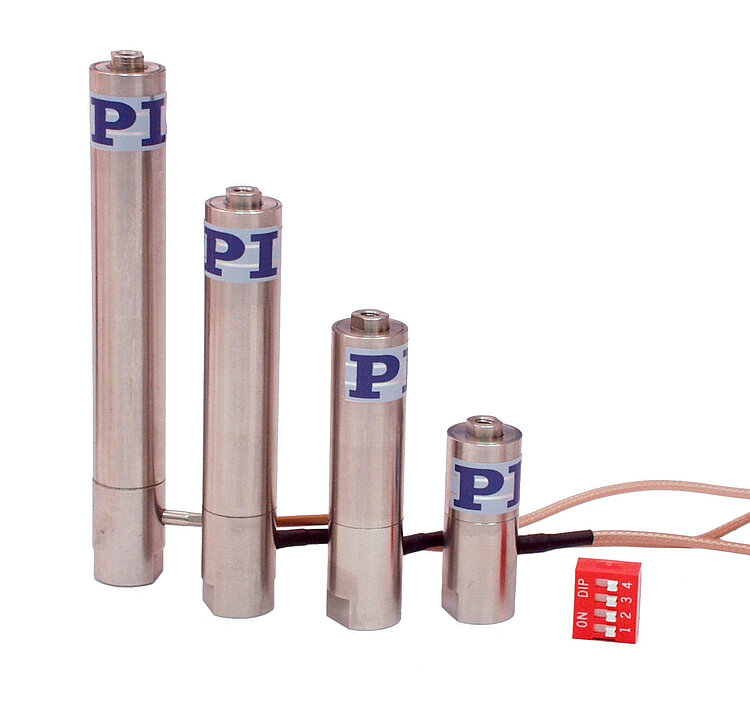

P-840 Preloaded piezo actuators
User Manual P840M0002
P-840.xxV Preloaded piezo actuators (vacuum versions)

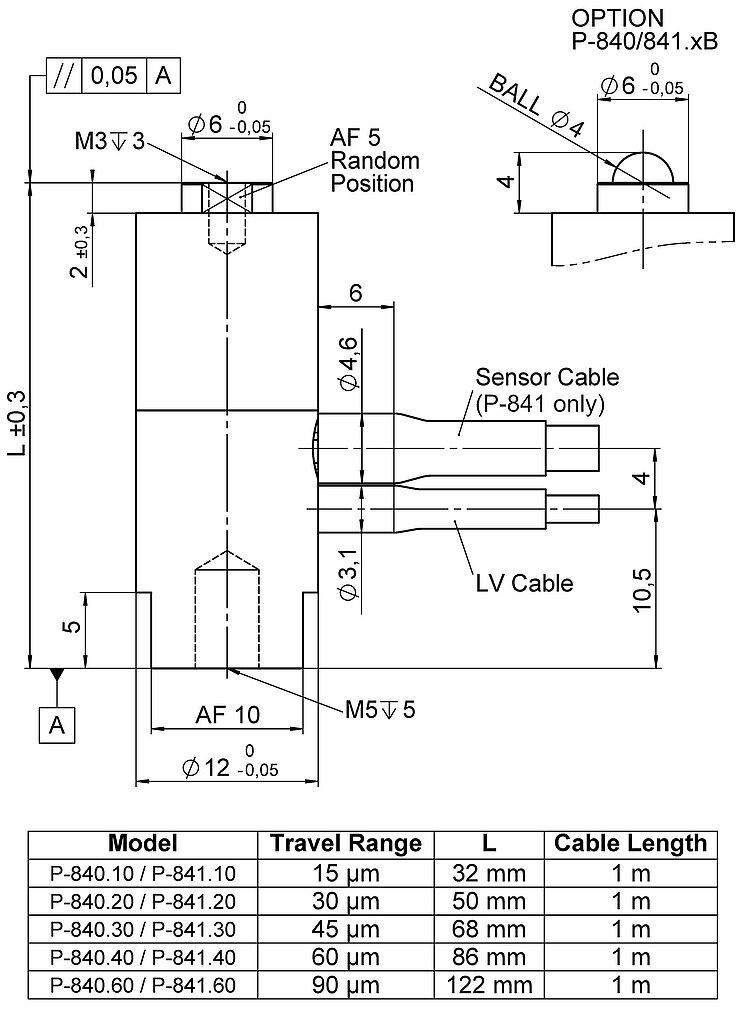

P-840 P-841 3-D model
