- Travel range 17 mm
- Min. incremental motion 0.1 µm
- Velocity to 1.5 mm/s
- Closed-loop DC motors
- MTBF >5000 h
Compact precision-class linear drive
High-resolution linear actuator, DC motor. Compact design due to folded drive. Rotating end piece, rotating pusher. Position-controlled DC motors with a gearhead and high-resolution rotary encoders allow for incremental motion and repeatability of just 100 nm
Fits on the M-105 microtranslation stage.
Extremely low-friction and backlash-free construction. Noncontact limit switches protect the mechanical system. Closed-loop variants with differential encoder driver for a safe position signal transmission at distances up to 10 m
Precision alignment, motorized replacement for micrometer screws.
Short Instructions MP122EK
Linear Actuators: M-168 / M-22x / M-23x
User Manual MP105

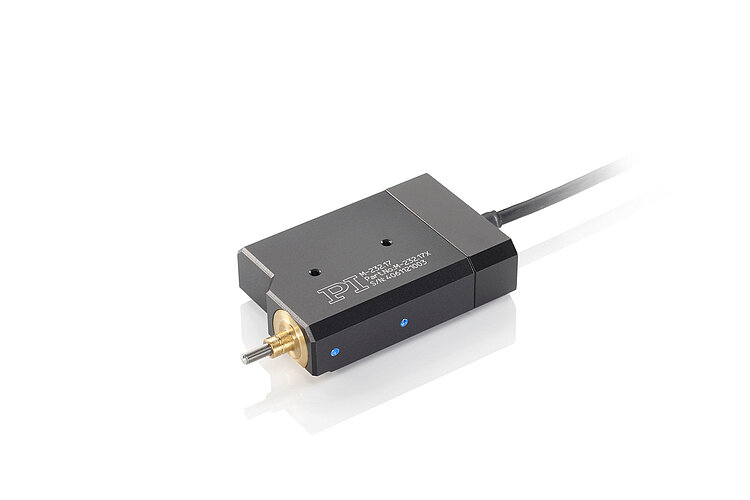

M-232 Compact High-Resolution Linear Actuator
