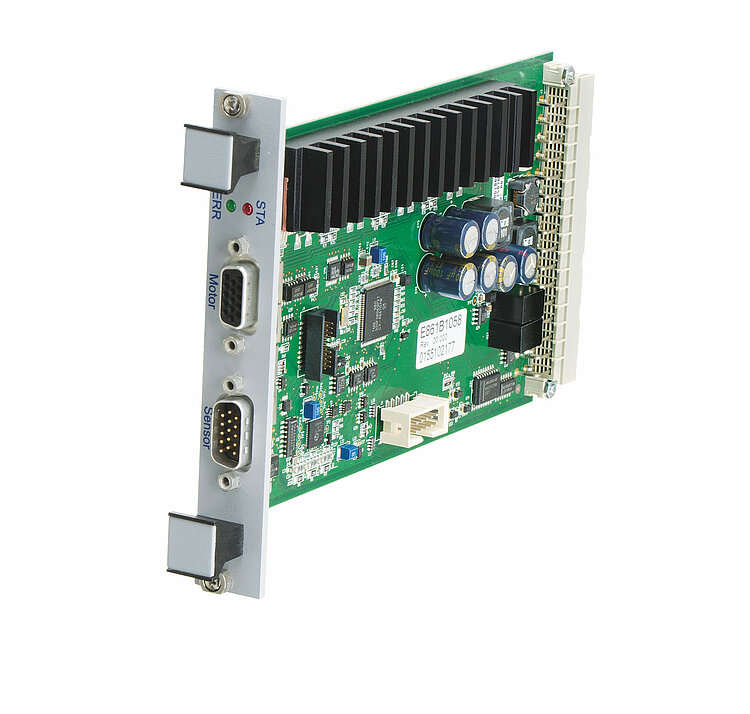

E-861.11C885 NEXACT® Controller Module

For the C-885 PIMotionMaster Modular Controller System

High-speed encoder input
Data recorder
Nonvolatile memory for macros and parameters
Control signal for motor brake
Suitable for vacuum use because the sensor can be switched off

1 axis. Supports motion types of the NEXACT® drives: Nanostepping mode for longer distances. Highly dynamic positioning within one step with resolutions below one nanometer. Sensor can be switched off via parameter, e.g., for use in a vacuum.

Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. PID controller, parameter changing during operation. Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.

Can be inserted in any free slot. Automatic detection and external communication (USB, Ethernet) by the processor and interface module of the C-885. Can be expanded with optional digital inputs and outputs. Power via the power supply of the C-885.

Download datasheet specifications quote / order

Datasheet

Version / Date

2019-12-03

pdf - 283 KB

Version / Date

2019-12-03

pdf - 285 KB

Version / Date

2019-12-16

pdf - 413 KB

Download

	E-861.11C885
Function	Controller module for NEXACT® drives, for C-885 PIMotionMaster modular multi-axis controller system
Drive type	NEXACT® piezo motor
Axes	1
Supported functions	Startup macro. Data recorder for recording operating data such as motor voltage, velocity, position or position error. Internal safety circuitry: Watchdog timer.

Motion and control	E-861.11C885
Controller type	PID controller, parameter changing during operation
Dynamics profile	Trapezoidal velocity profile
Encoder input	Analog encoder input sine-cosine, interpolation factor to 16384x; interpolation electronics preset for differential transmission, 1 V_ppand 2.5 V encoder offset signal
Stall detection	Automatic motor stop when a programmable position error is exceeded
Limit switches	2 × TTL
Reference switch	1 × TTL

Electrical properties	E-861.11C885
Max. output power	40 W
Output voltage	0 V to 45 V
Max. current consumption	2 A

Interfaces and operation	E-861.11C885
Communication interfaces	USB or Ethernet, via C-885.M1 / C-885.M2 Digital processor and interface module
Motor connector	HD Sub-D 15 (f)
Sensor connection	HD Sub-D 15 (m)
I/O lines	Optional with C-885.iD Digital interface module for PIMotionMaster: 4 analog/digital inputs (0 to 5V/TTL), 4 digital outputs (TTL)
Command set	PI General Command Set (GCS)
User software	PIMikroMove
Application programming interfaces	API for C / C++ / C# / VB.NET / Python, drivers for NI LabVIEW

Miscellaneous	E-861.11C885
Operating voltage	24 V DC, supply via C-885 PIMotionMaster
Operating temperature range	10 to 40 °C
Mass	220 g
Dimensions	186.42 mm × 128.4 mm (3 RU) × 19.98 mm (4 HP)
