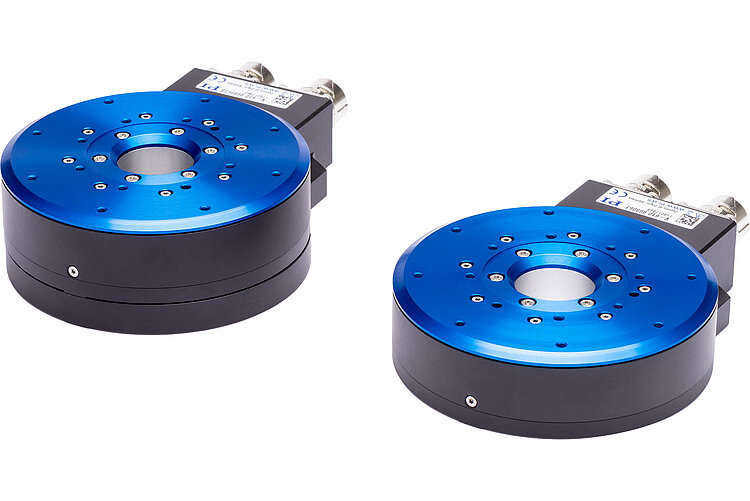

V-610 Compact PIMag® Rotation Stage

Flat Design at High-Torque for Loads up to 2 kg

  • Flat and compact design
  • Clear aperture for transmitted-light applications
  • Optional holding brake
  • Ironless PIMag® torque motor developed in-house for high drive torque
V-610 Compact PIMag® Rotation Stage
Product Description Specifications Downloads Quote / Order

PIMag® torque motor

Torque motors are electromagnetic direct drives. They dispense with mechanical components in the drivetrain and transfer the drive force directly and friction-free to the motion platform. The drives reach high velocities and accelerations. Ironless motors are particularly suitable for positioning tasks with the highest demands on precision because there is no undesirable interaction with the permanent magnets. This allows smooth running even at the lowest velocities and at the same time, there is no vibration at high velocities. Nonlinearity in control behavior is avoided and any position can be controlled easily. The drive force can be set freely.

PIMag®

PI develops proprietary magnetic motors if positioning systems need to achieve specific performance characteristics that cannot be reached by using drive components currently available on the market, for example, to achieve a high force density or a compact design. The motors developed in-house are identified by the PIMag® brand name.

Application fields

Sample inspection. Precision microassembly. Research. Biotechnology. Semiconductor technology. Measuring technology. Automation.

Specifications

Datasheet

Datasheet V-610

Version / Date
2021-12-06
pdf - 584 KB
Version / Date
2021-12-06
pdf - 586 KB
Version / Date
2021-01-19
pdf - 543 KB

Downloads

Datasheet

Datasheet

Datasheet V-610

Version / Date
2021-12-06
pdf - 584 KB
Version / Date
2021-12-06
pdf - 586 KB
Version / Date
2021-01-19
pdf - 543 KB

Documentation

Documentation

User Manual V610UM0001

V-610.998061 PIMAG® RotationStage

Version / Date
2021-08-31
pdf - 3 MB
Version / Date
2021-08-31
pdf - 3 MB
Documentation

User Manual V610UM0002

V-610.998061 PIMAG® RotationStage

Version / Date
2021-11-09
pdf - 2 MB
Version / Date
2021-11-09
pdf - 2 MB

3-D Models

3-D Models

V-610 3-D model

Version / Date
2019-06-25
zip - 2 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

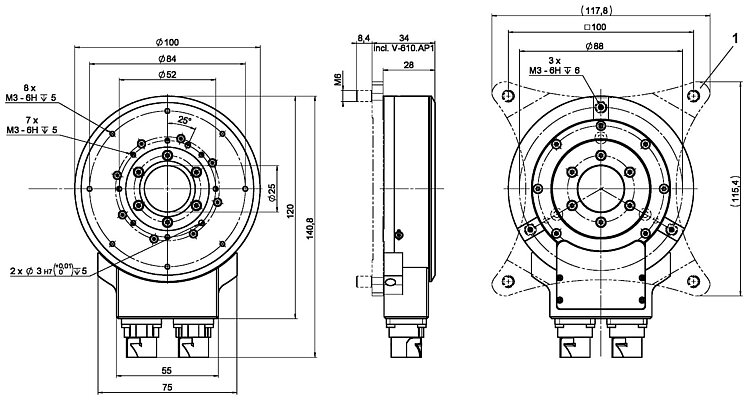

V-610.998061

Compact PIMag® rotation stage, Ø 25 mm clear aperture, ironless 3-phase torque motor, incremental angle measuring system with sin/cos signal transmission

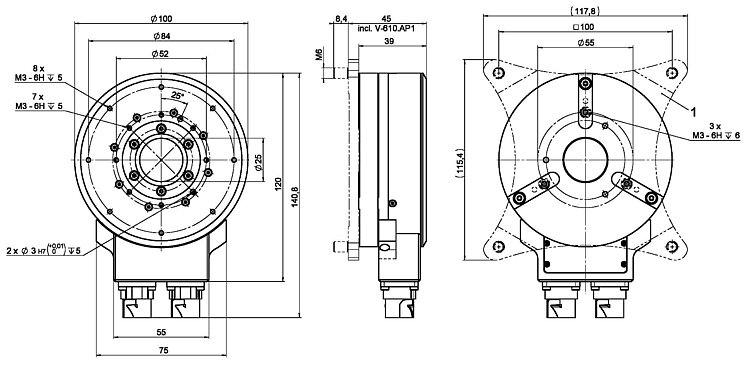

V-610.998061B

Compact PIMag® rotation stage, Ø 25 mm clear aperture, ironless 3-phase torque motor, incremental angle measuring system with sin/cos signal transmission, holding brake

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
