ND72Z2LAQ PIFOC Objective Scanning System 2000 µm

Nanometer Resolution and Fast Step-and-Settle

  • Complete system with digital controller, software, and M32 QuickLock thread adapter
  • USB, RS-232
  • Sensor resolution 0.5 nm
  • Highly dynamic step-and-settle for Z stacks
  • Further thread adapters as optional accessory
  • Compatible with µManager, MetaMorph, and MATLAB
  • Parameter changing during operation
ND72Z2LAQ PIFOC Objective Scanning System 2000 µm
Product Description Specifications Downloads Quote / Order

Application fields

  • Two-photon microscopy
  • Confocal microscopy
  • 3-D imaging
  • Laser technology
  • Interferometry
  • Biotechnology
  • Micromanipulation
  • Autofocus for long travel ranges

Nanometer precision and high feed force with PiezoWalk® walking drives

Several piezo actuators perform a walking motion in the PiezoWalk® walking drive that leads to forward feed of a runner. Control of the actuators allows the smallest step and forward feed motion at a resolution of well under one nanometer.

Highly accurate position measuring with incremental linear encoder

Noncontact optical encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.

Extensive software for rapid start of productive operation

Thanks to support of MATLAB and NI LabVIEW as well as all common operating systems (Windows, Linux, and macOS), integration succeeds in virtually every environment – quickly and efficiently. Sophisticated programming examples and software tools such as PIMikroMove shorten the time to productive operation considerably.

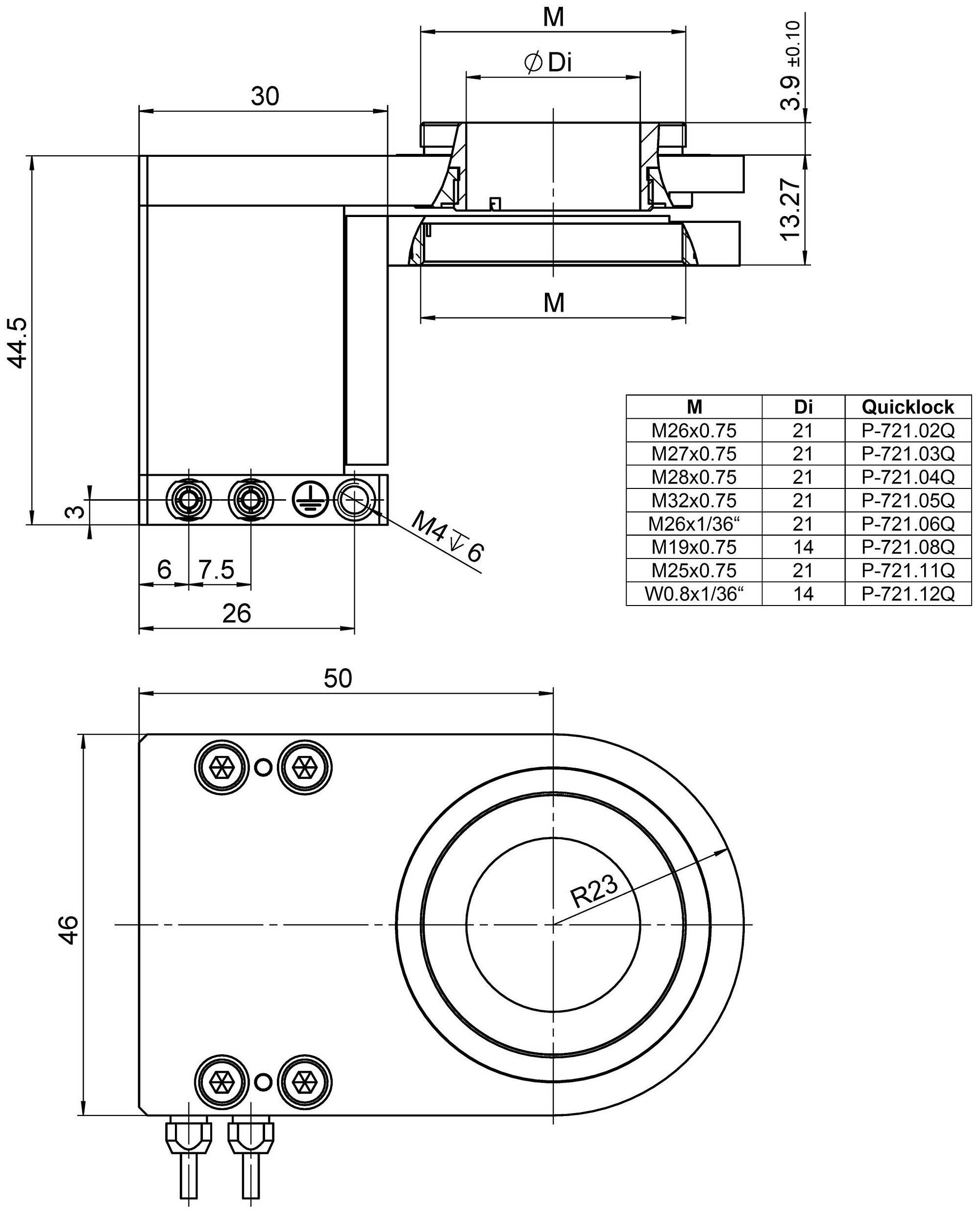

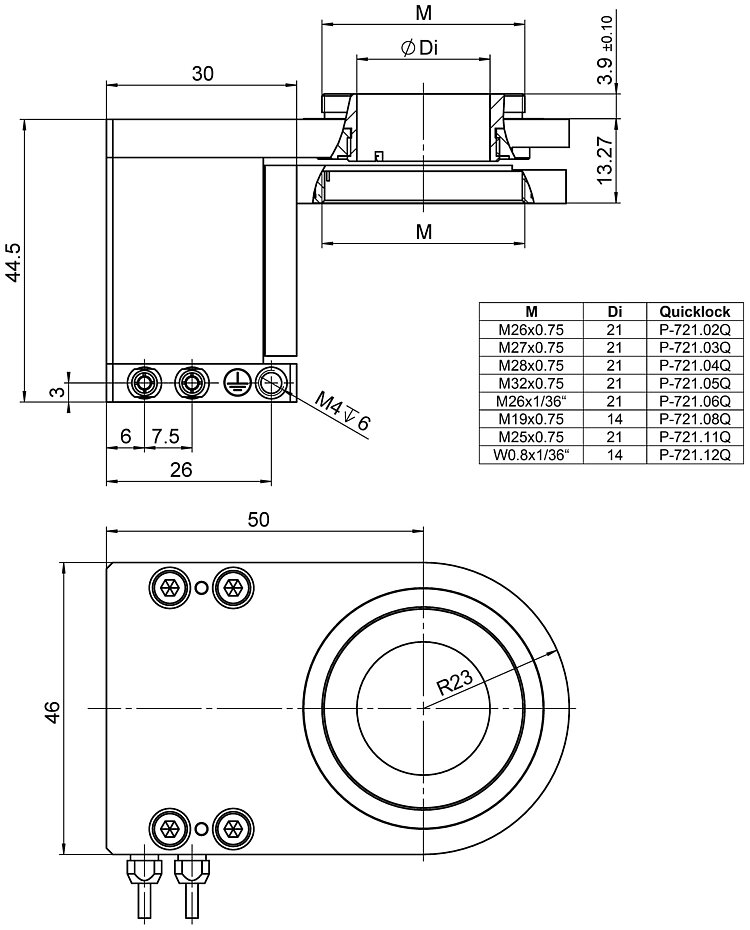

Specifications

Datasheet

Datasheet ND72Z2LAQ

Version / Date
2018-06-06
pdf - 599 KB
Version / Date
2018-06-06
pdf - 601 KB
Version / Date
2018-06-07
pdf - 813 KB
Version / Date
2018-10-24
pdf - 877 KB

Downloads

Product Note

Product Note

Product Change Notification Motor Driven Products

Version / Date
2021-04-19
pdf - 917 KB
English

Datasheet

Datasheet

Datasheet ND72Z2LAQ

Version / Date
2018-06-06
pdf - 599 KB
Version / Date
2018-06-06
pdf - 601 KB
Version / Date
2018-06-07
pdf - 813 KB
Version / Date
2018-10-24
pdf - 877 KB

Documentation

Documentation

Installation Instructions P721T0002

P-721.xxx / P-725.xxx Thread Adapters for PIFOC Objective Scanners

Version / Date
2021-07-27
pdf - 795 KB
Version / Date
2021-07-27
pdf - 804 KB
Documentation

User Manual N725T0002

N-725.2A PIFOC Z Drive with NEXACT® Linear Motor

Version / Date
2021-07-29
pdf - 1 MB
English

3-D Models

3-D Models

3-D-model P-721.1xx

zip - 155 KB
3-D Models

3-D-model ND72Z2LAQ

zip - 343 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

Order as system, including controller

ND72Z2LAQ

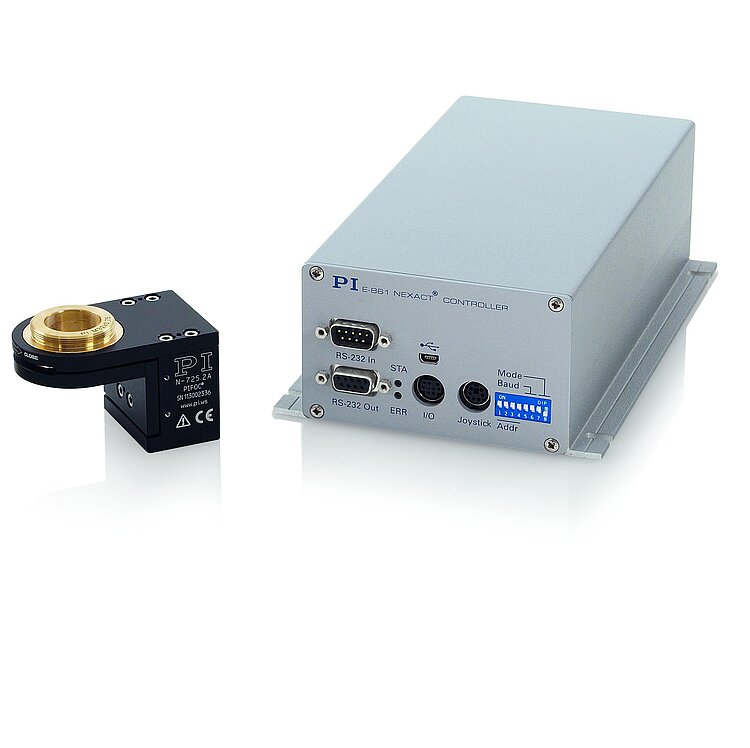

PIFOC piezo nanofocusing system with NEXACT® linear drive for long travel ranges, 2 mm, linear encoder, 0.5 nm resolution, M32 QuickLock adapter, with controller

Accessories in the scope of delivery

More accessories

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
